Capacity

16000 Kg

Height

9,50 m

Engine Power

160 kW

16.10

Capacity

16000 Kg

Height

9,50 m

Engine Power

160 kW

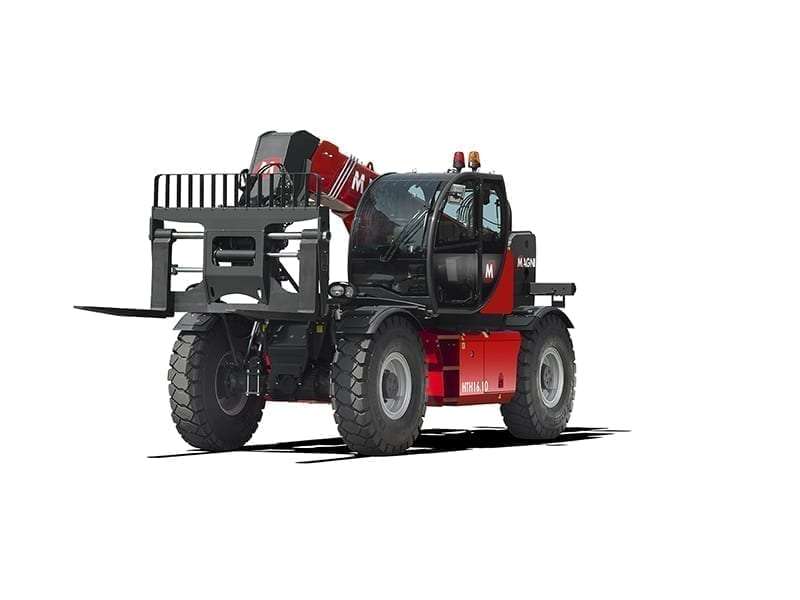

The HTH 16.10 telehandler is ideal for safely handling heavy and bulky loads. Capable of lifting up to 16 tons, it is compatible with numerous accessories that make it extremely versatile. Equipped with an RFID system that allows automatic recognition of the various accessories used, this telehandler is able to respond to countless applications in the heavy industry sector.

The 4-wheel drive, 3 steering modes, and high ground clearance give it great maneuverability on all terrains.

The standard configuration of the machine includes:



SERVICE

MyMagni connectivity system by Trackunit (2 years)
24-month or 2000-hour warranty



Comfort seat
Adjustable steering column
Analog joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A inputs (5V)

7-inch touch screen
MCTS – Magni Combi Touch System on-board software
RFID automatic attachment recognition system
LMI – Load control system
Integrated on-board and remote diagnostics



Heavy-Duty Q-fit
Two-line CAN-bus system
Automatic alignment of front and rear wheels
Automatic parking brake
Mechanical battery disconnect in engine compartment
24V electrical system -IP67



MyMagni connectivity system by Trackunit (2 years)
24-month or 2000-hour warranty

Technical Data

Metrico
CaratteristicaMetricoImperiale
Stabilizers--
Lifting Capacity16000 Kg35300 lbs
Maximum Height Capacity9000 Kg19800 lbs
Lifting Height9.50 m31' 10''
Max reach5.10 m16' 4.99''
EngineVolvo TAD 582 VE - Stage VVolvo TAD 582 VE - Stage V
Rated Power160kW 218hp 2200rpm160kW 218hp 2200rpm
Travel--
Hydraulic Flow Rate--
Number of Gears2/22/2
Hydraulic system350 bar-
Length6.38 m20' 11''
Width2.57 m8' 4''
Ground Clearance440 mm1' 4.99''
Unladen Weight19200 Kg45200 lbs
Speed25 km/h15 mph
Rotation--
Standard Air ConditioningSiSi
Automatic Attachment RecognitionSiSi
Reversible FanSiSi

Compatible accessories

Forklifts

Forklifts

Special

Special

Platforms

Platforms

Hooks

Hooks

Loaders

Loaders

Grippers

Grippers

Booms

Booms

Winches

Winches

Optional

Setups and Certifications

Setups and Certifications

Comfort

Comfort

Performance

Performance

Safety

Safety

Specials

Specials
