3.6

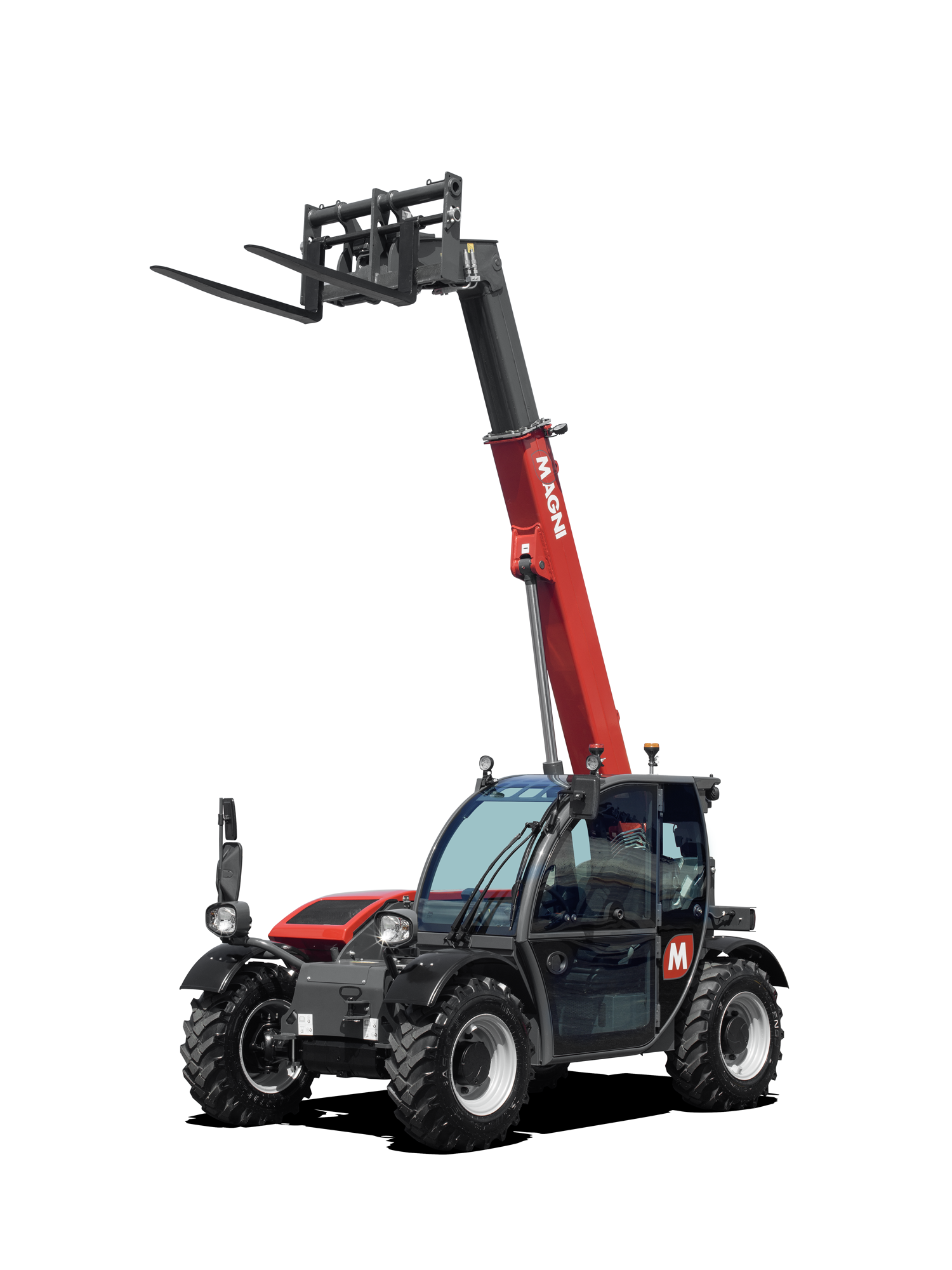

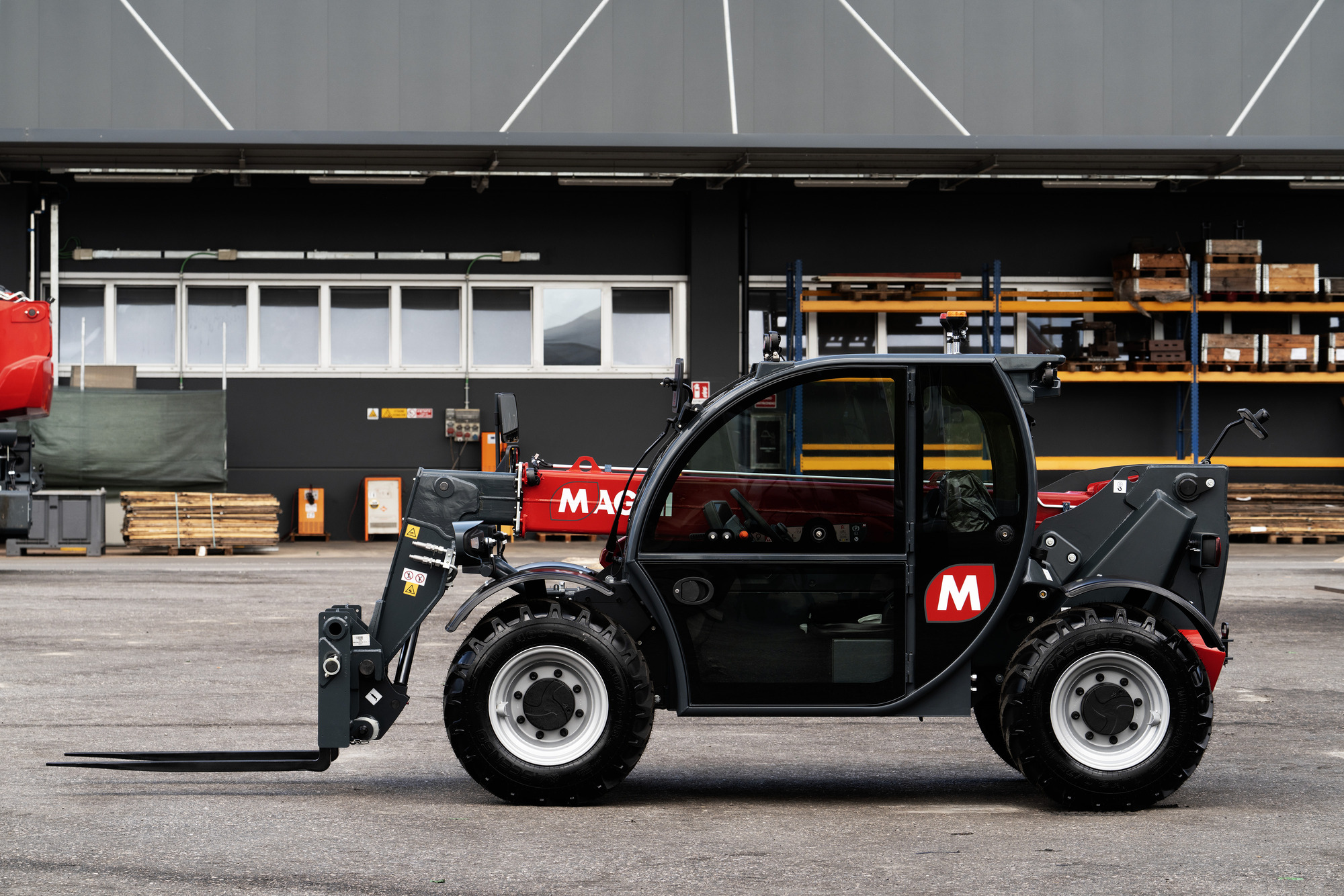

With 3 tons of capacity and 5.8 meters in height, the new TH 3.6 combines compact dimensions and high performance. The most compact fixed telescopic handler in the TH range, designed for the construction, logistics, and soon also for the “agricultural sector, is capable of carrying the full load to a” height of 5.4 meters, 2,500 kg at maximum height, and 1,100 kg at over 3 meters of horizontal reach. Thanks to its low-profile design, it is ideal for confined spaces, while maintaining optimal ground clearance for rough terrain.

These features, combined with a 55 kW (75 hp) Deutz Stage V engine, allow it to reach 35 km/h. The 4-wheel drive and steering, supported by a hydrostatic transmission, ensure maximum stability and maneuverability with 3 types of steering: front, concentric, and crab.

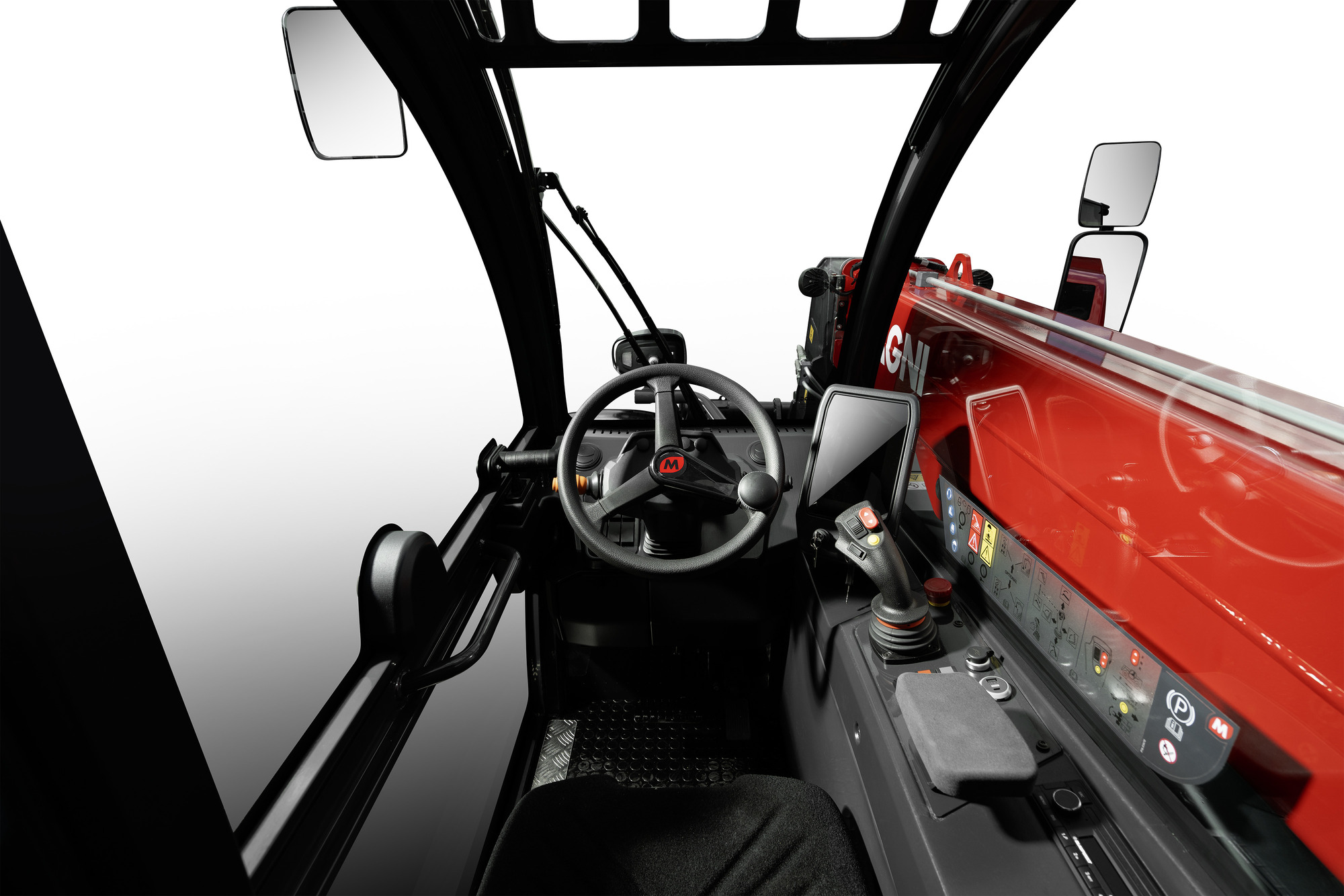

With the launch of the TH 3.6, Magni presents the new compact cabin that inherits the same development philosophy from the previous TH range, with the addition of a new dashboard that optimizes the “user experience thanks to the ergonomic positioning of the main controls. Furthermore, it is equipped with USB ports (3.0 and c-type), to allow charging of electronic devices, and a practical cup holder. The standard equipment of the new cabin is completed by” the pneumatic suspension seat, adjustable steering wheel, heating, and radio.

Accessible through the 7-inch touch screen, the on-board MCTS (Magni Combi Touch System) software provides complete control of the machine through icon-based navigation. From the main menu, it is possible to access themed pages with different functionalities, including load diagrams.

Compared to competing models available on the market equipped with the more common load cell system, the TH 3.6 is the only one equipped with a more sophisticated and precise anti-tipping mechanism to maximize performance and safety in line with the entire TH range. This is the LMI (Load Moment Indicator), which allows constant monitoring of the vehicle’s movements to avoid any type of overload.
