5500 Kg
15,20 m
74,40 kW
Home > Prodotti > Telescopic Handlers > TH > 5,5.15 P

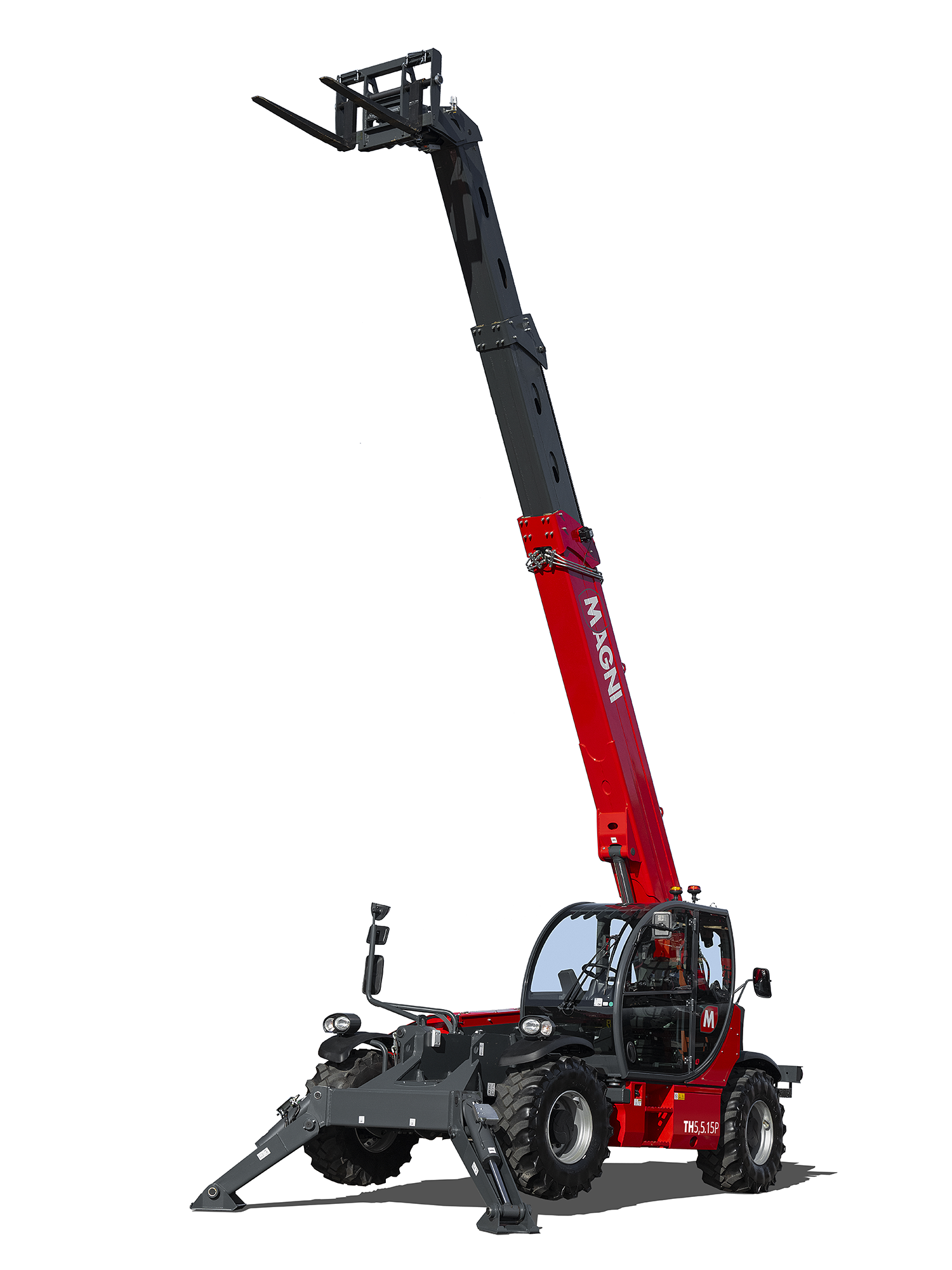

The TH 5,5.15 P model is a fixed telescopic handler suitable for demanding construction sites in light industry. Powered by a 75 kW Deutz engine, it can safely reach 14.80 m in height on rough terrain thanks to automatic leveling, which acts on both wheels and stabilizers, and four-wheel drive. The hydrostatic transmission offers precision and agility. It is compatible with a wide range of accessories and is equipped with an RFID system that allows automatic recognition of accessories with the consequent creation of load diagrams.
This model is equipped with wheel leveling that allows the operator to adjust the inclination of the machine, so as to have the entire load diagram available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
Some features:
• Low profile design for greater stability • Available with Deutz Stage V and IIIA engines • Available in two engine options of 55 kW and 75 kW to suit your needs • Standard pivoting stabilizers for optimized lifting capacity up to 5.5 tons • L/S hydraulic system of 350 bar • 4WD
2006/42/EC EU Machinery Directive
2016/1628 EU Regulation on Stage V engine emissions
EN 1459-X Relativa alle norme sui requisiti di sicurezza dei carrelli a sbraccio variabile
EN 280-1/EN 280-2 Norme relative alle piattaforme di lavoro mobili elevabili (se disponibili)
ROPS/FOPS Level 2 Relating to the standard for protective structures
