6.22

The 6.22 is extremely versatile as, by simply changing the attachment, it can be used as a telescopic handler with forks, as an off-road crane by mounting the winch, and as an aerial platform thanks to the basket. Moreover, through the RFID system, the machine recognizes the attachment and automatically sets up the appropriate safety devices and the relative load diagram.

With ROPS/FOPS Level 2 certification, the cabin ensures top-of-the-class safety during all work phases.

Visibility is also improved, while maintaining all regulation and safety standards, thanks to the forward positioning of the cabin, the increase in glass surface in the upper part, and the thinning of the steering column.

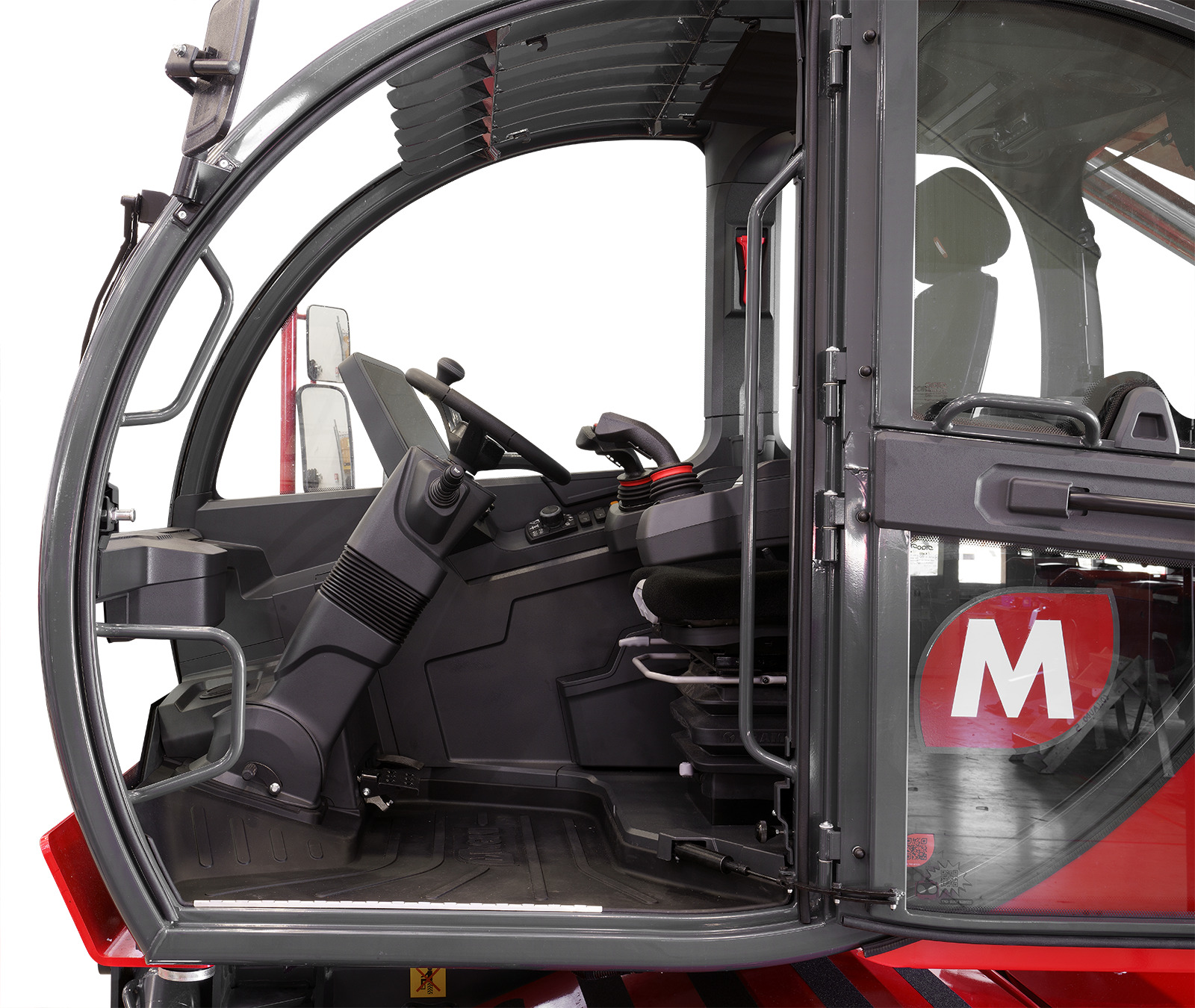

The new “easy access” system, patented by Magni, facilitates entry and exit from the cabin by allowing a slight misalignment between the turret and the chassis, making it easy to access the machine.

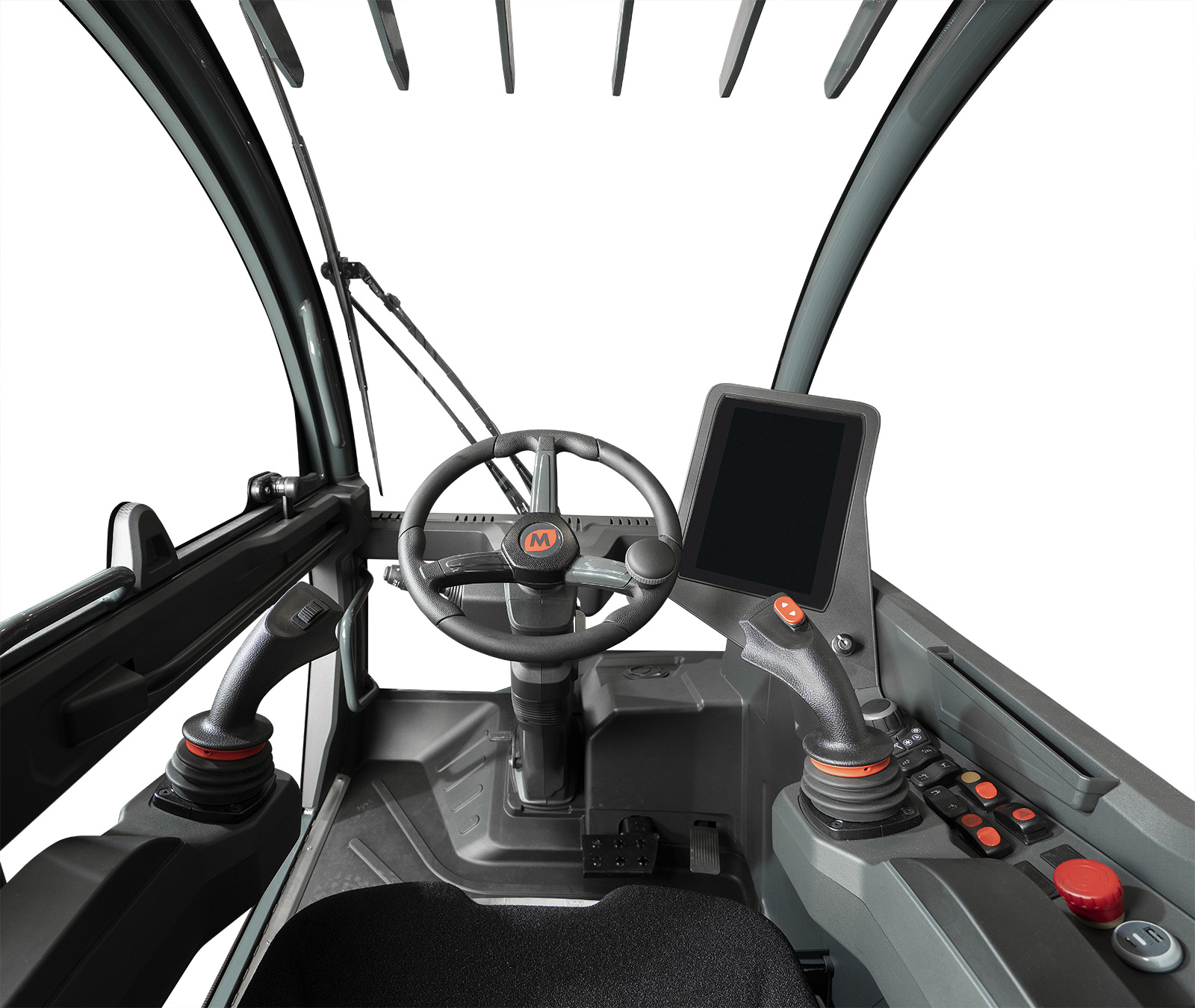

In line with all other RTH and TH models, the cabin interiors have been completely redesigned and all coverings have been created with injection molding for greater durability and better finishes. When the door opens, courtesy lights located at various points inside the cabin turn on. These LEDs are dimmable and gradually decrease in intensity once the machine is turned off.

The airflows inside the cabin have been improved to optimize defrosting even in the coldest climates.

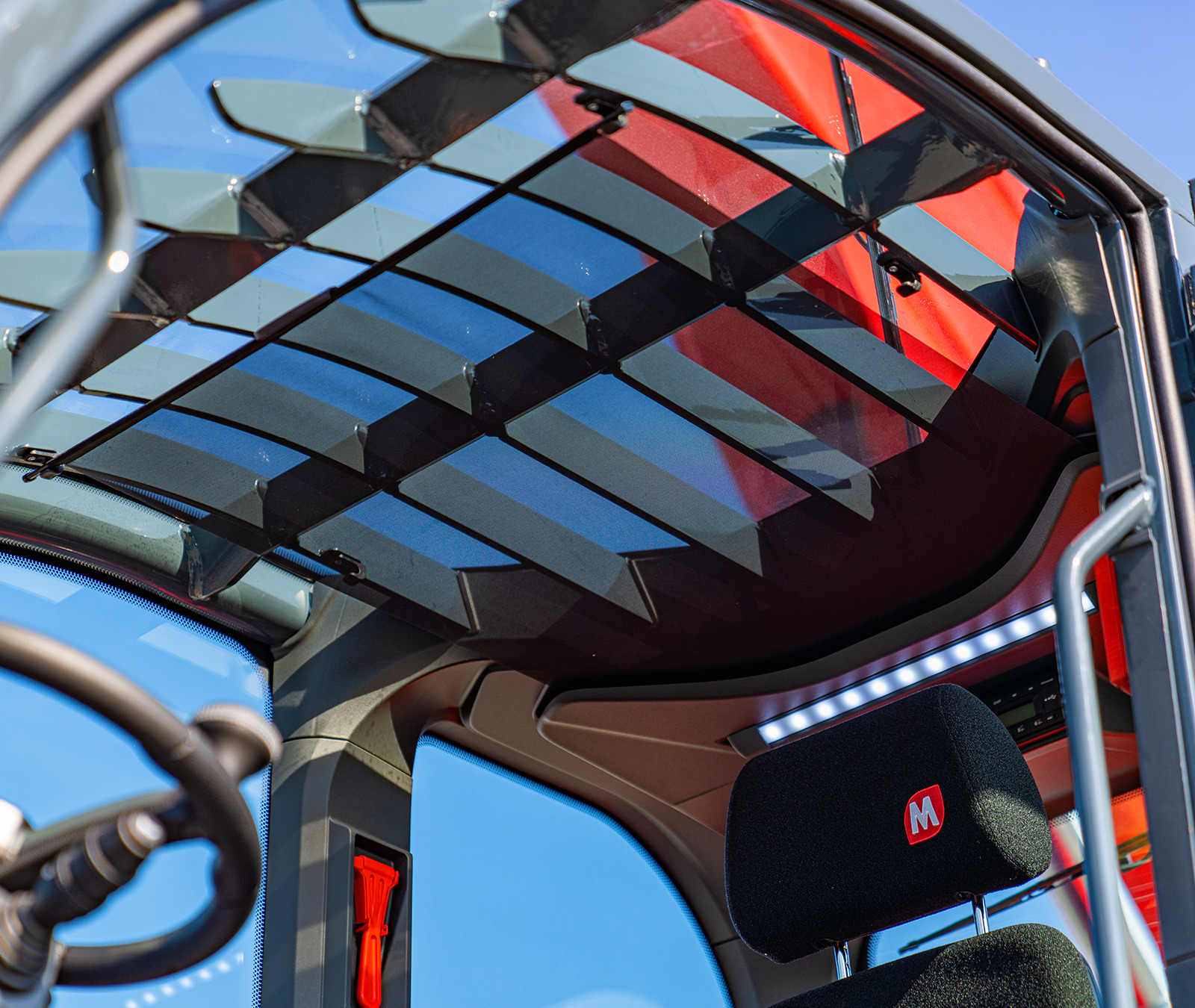

At the top, above the operator’s head, a standard sun shade has been positioned, lockable in two different positions to ensure maximum comfort even during the sunniest days.

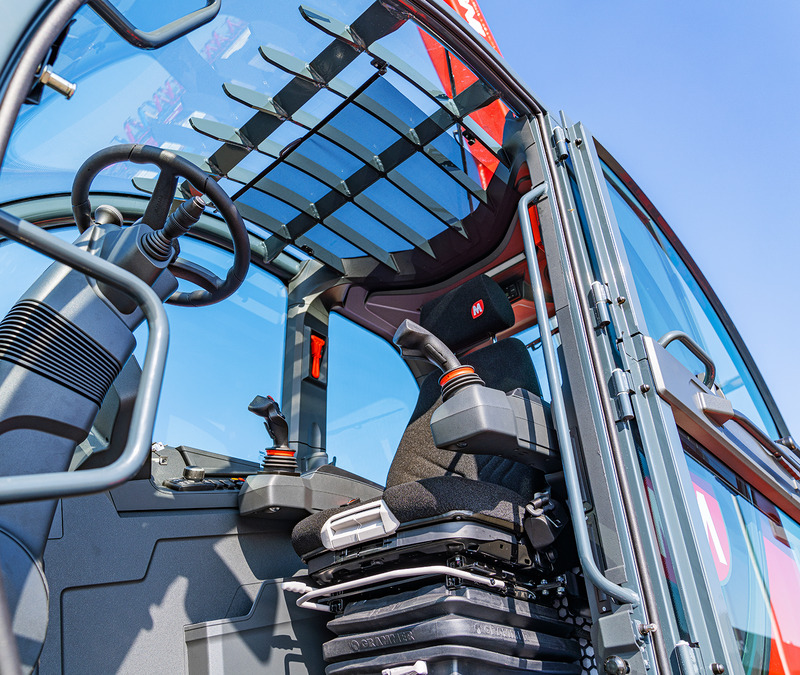

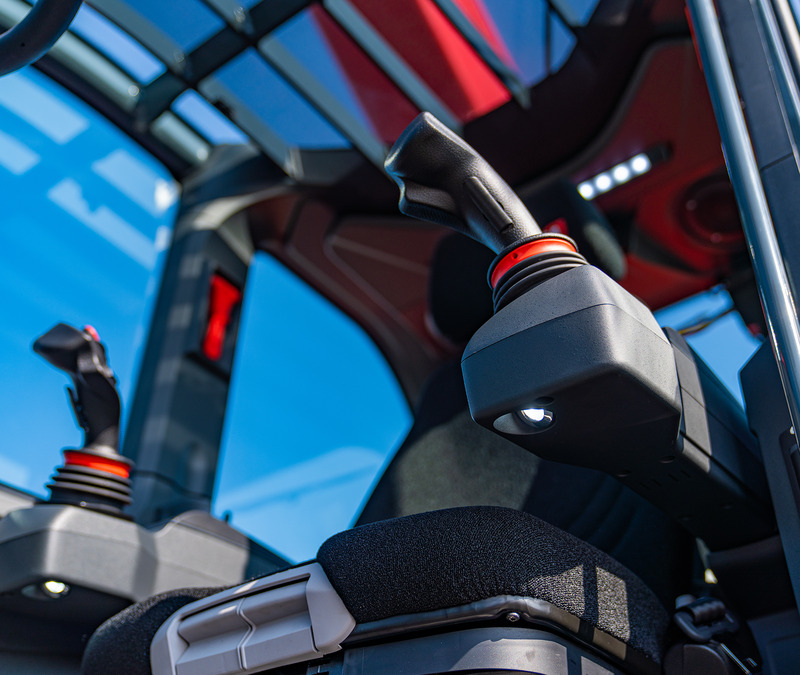

It is possible to lift both armrests, which follow the seat, in order to create a practical storage pocket, housed under the right armrest. A premium seat with headrest, tilting movement, and pneumatic suspension is also available.

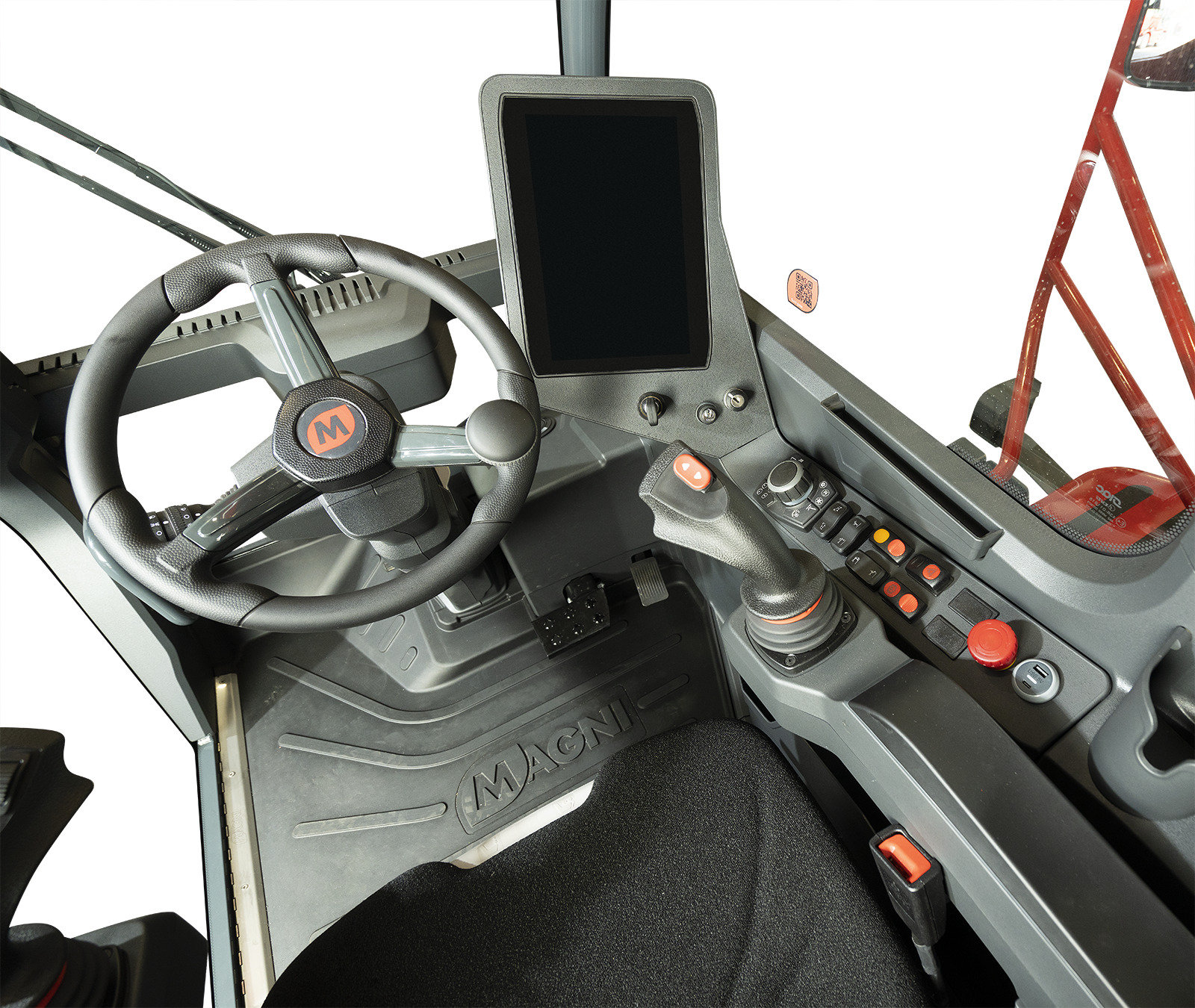

Accessible through the touch screen, the software has been completely renewed. The graphic restyling of the interface promotes easy and intuitive use with recognizable functions through user-friendly icons.

Unlike the previous software, a main menu page is now available from which you can access different thematic pages, with new functions that allow for a smoother and more enjoyable user experience.

Among the main features and innovations we find:

• Handling mode: which allows separating the boom speed from the traction speed, enabling more precise and faster movements when using the boom extension and wheel travel simultaneously.
• Dedicated pre-settings: three new mappings selectable by the operator, from the most precise to the most responsive, to optimize the performance of the attachment used.

A further and important innovation concerns the introduction of the Magni LLD (Live Load Diagram) system, which allows for three different types of load diagram pages and keeps maneuvering limits under control, to operate in total safety:

• Standard, which allows viewing all load ranges (also present in previous versions);
• Dynamic, which allows viewing the available work area depending on the load being lifted.
• 360° Dynamic, which allows viewing the available work area from above, ensuring greater precision when operating in non-uniform stabilization conditions.

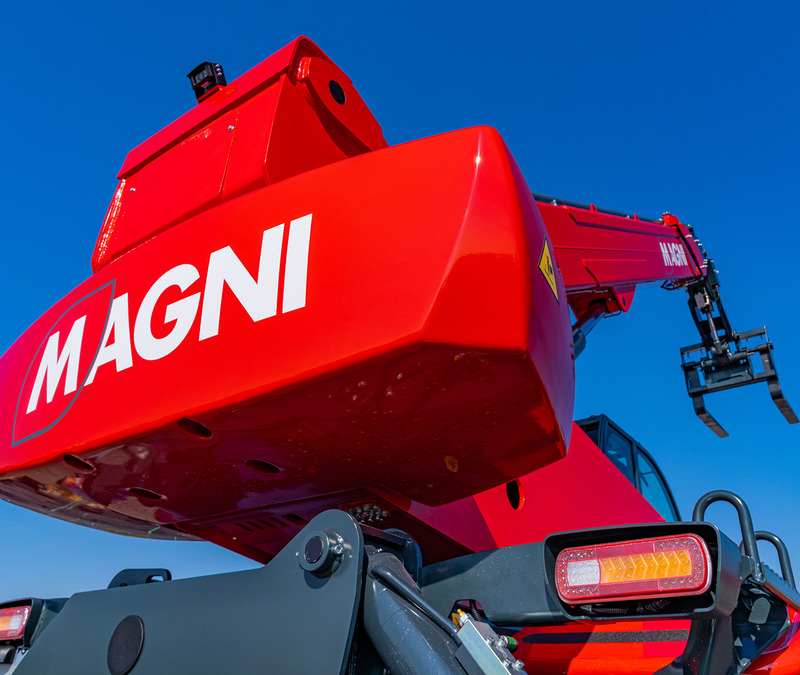

It is also equipped with a standard rear-view camera, viewable within the MCTS monitor, which activates automatically when reverse gear is engaged.
