320 Kg
18,11 m
Home > Prodotti > Piattaforme aeree > Dab18rt

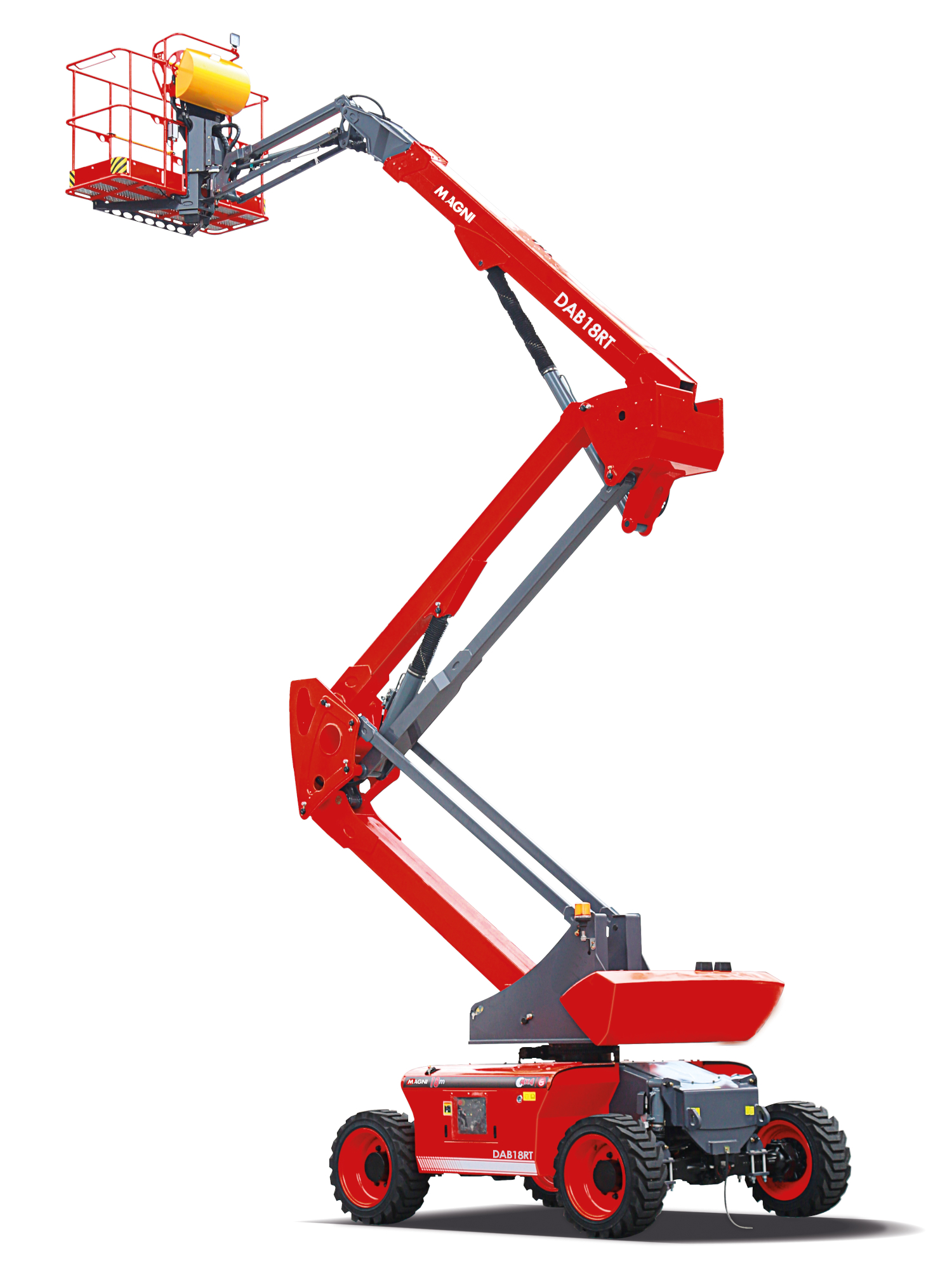

The design of this articulated platform features a lowered center of gravity, achieving optimal performance. It is equipped with a low fuel consumption diesel engine and 4 integrated drive wheels in the axle for improved off-road traction. This platform also features a boom folding mode for transport that allows the machine to be shipped via container.
• Oscillating front axle
• Two travel speeds
• 2-wheel steering
• 4-wheel drive
• 360° (continuous) rotation
• Proportional controls
• Steering button on joystick
• Flashing beacon
• Non-marking tires
• Horn
• Hour meter
• Extreme environment kit
• 12V DC emergency power supply
• Stage V engine
• Integrated special drive axle
• Automatic engine shutdown in case of failure
• Engine anti-reverse device
• Engine anti-restart protection
• Hydraulic oil cooler
• Self-leveling
• Rotating +/-90°
• Schuko power outlet 16A/250V
• Drive enable system
• Platform load control system
• On-board diagnostic system
• Emergency descent system
• Tilt indicator with alarm
• Anti-crushing protection
EN 280-1 Standards for mobile elevating work platforms (if available)
ANSI/SAIA A92.20
Home > Prodotti > Piattaforme aeree > Dab18rt
Caratteristica | Metrico | Imperiale |
---|---|---|
Stabilizers | Si | Si |
Max. working height | 18.11 m | - |
Max. basket height | 16.11 m | - |
Articulation point | 8.85 m | - |
Negative height | 1.30 m | - |
Negative reach | 8.23 m | - |
Load capacity | 320 Kg | - |
Max. Occupants | 2 | 2 |
Maximum gradeability (stowed) | 40% | 40% |
Max. working slope | X-5°/Y-5° | X-5°/Y-5° |
Max. Wind Speed | 12.50 m/s | 12.50 m/s |
Turning radius (internal) | 3 m | - |
Turning radius (external) | 4.73 m | - |
Jib Type | Regolare | Regolare |
Jib Length | 1,50 | 1,50 |
Jib Vertical Rotation | 132° | 132° |
Basket width | 0.79 m | - |
Basket length | 1.83 m | - |
Basket rotation | 180° | 180° |
Total weight | 8.200 Kg | - |
Speed (closed configuration) | 6 km/h | - |
Speed (working configuration) | 1.10 km/h | - |
Tires | 315/55D20 | 315/55D20 |
Engine | Kubota D1105/18.2 kW | Kubota D1105/18.2 kW |
Rated power | - | kW hp rpm |
Diesel tank capacity | 115 l | 115 l |
Oil tank capacity | 145 l | 145 l |
Emergency power supply system | 12V DC | 12V DC |
Transmission | Idrostatica | Idrostatica |
Platform length | 7.41 m | - |
Platform length (transport) | 5.47 m | - |
Platform width (tires) | 2.33 m | - |
Platform width (transport) | 5.47 m | - |
Platform height | 2.55 m | - |
Platform height (transport) | 2.59 m | - |
Wheelbase | 2.40 m | - |
Outside clearance | 0.13 m | - |
Ground clearance | 0.31 m | - |
