247 Kg
28,15 m
Home > Prodotti > Piattaforme aeree > Dab28rt

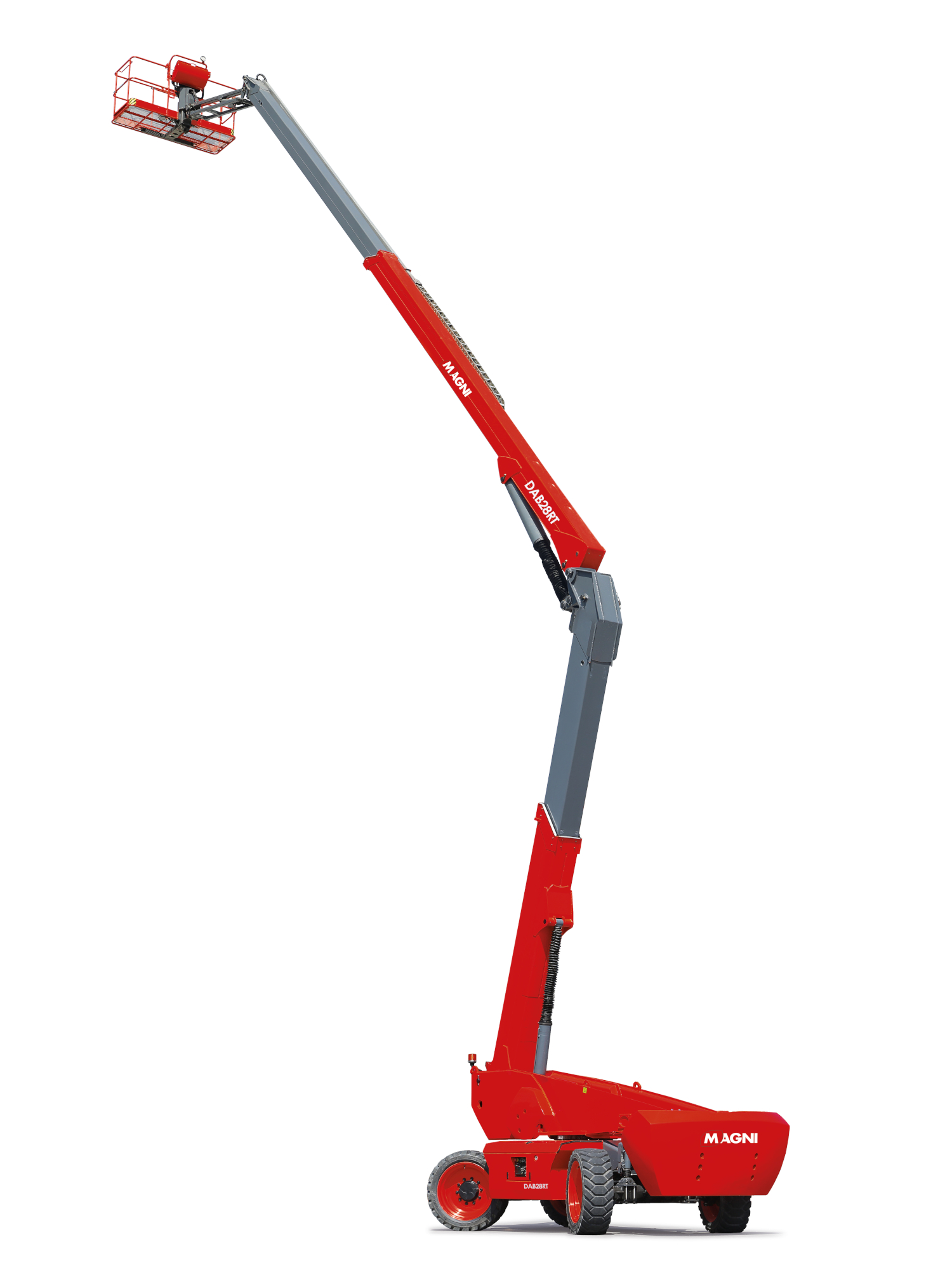

The design of this articulated platform features a lowered center of gravity, achieving optimal performance. Its design offers maximum versatility with the ability to position even in negative spaces, to reach areas below the supporting surface. It is equipped with a low fuel consumption diesel engine and 4-wheel drive integrated into the axle for improved off-road traction. This platform also features a boom folding mode for transport that allows the machine to be shipped via container.
• Modular design with parts compatibility across the entire range • Proportional controls • Steering button on joystick • Flashing beacon • Horn • Hour meter • Extreme environment kit • 12 V DC emergency power supply
• Oscillating front axle for better stability on all types of terrain • 4-wheel steering • 4-wheel drive • 4-wheel drive axle with positive traction • 360° rotation (continuous)
• Stage V engine • Integrated special drive axle • Automatic engine shutdown in case of failure • Engine anti-reverse device • Engine anti-restart protection • Hydraulic oil cooler
• Self-leveling basket • Rotating basket +/-90° • Power outlet on platform
• Drive enable system • Platform load control system • On-board diagnostic system • Tilt indicator with alarm • Anti-crushing protection • Emergency descent system
ANSI/SAIA A92.20
EN 280-1 Standards for mobile elevating work platforms (if available)
