272 Kg
41,08 m
Home > Prodotti > Piattaforme aeree > Dab41rt

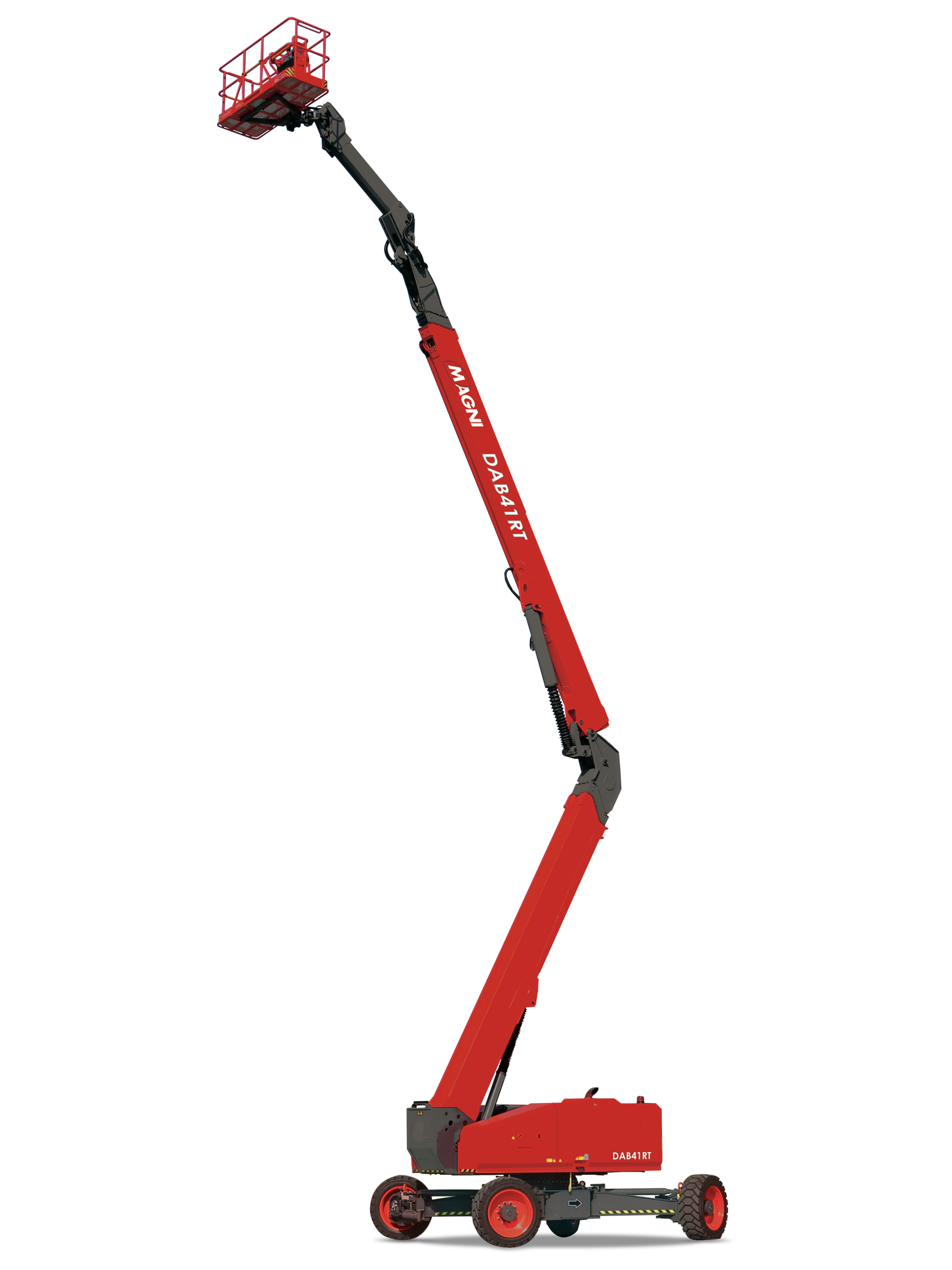

The design of this articulated platform features a lowered center of gravity, achieving optimal performance. Its design offers maximum versatility with the ability to position even in negative spaces, to reach areas below the supporting surface. It is equipped with a low fuel consumption diesel engine and 4-wheel drive integrated into the axle for improved off-road traction. This platform also features a boom folding mode for transport that allows the machine to be shipped via container.
Two travel speeds 4-wheel steering 4-wheel drive Automatic tire alignment during steering change In-Situ axle expansion technology Differential lock 360° rotation (continuous) Turret locking system Ultra-rigid boom Proportional controls Steering button on joystick Flashing beacon Non-marking tires Horn Hour meter Openable cover for easy maintenance Negative pressure brake with sensor Real-time onboard system Platform rotation angle monitoring sensor Chain malfunction monitoring Speed monitoring
Stage V engine (stage IIIA on request) Engine start and stop protection Hydraulic oil cooler
Self-leveling Rotating +/-90° Schuko power outlet 16A/250 V
Drive enable system Load control system in platform Onboard diagnostic system Tilt indicator with alarm Basket bottom protection sensor Descent and movement alarms Anti-crushing protection
ANSI/SAIA A92.20
EN 280-1 Standards for mobile elevating work platforms (if available)
