Capacity

1000 Kg

Working height

28 m

[potenza_nominale_fuoristrada_metrico]

Ds2825rt

Capacity

1000 Kg

Working height

28 m

[potenza_nominale_fuoristrada_metrico]

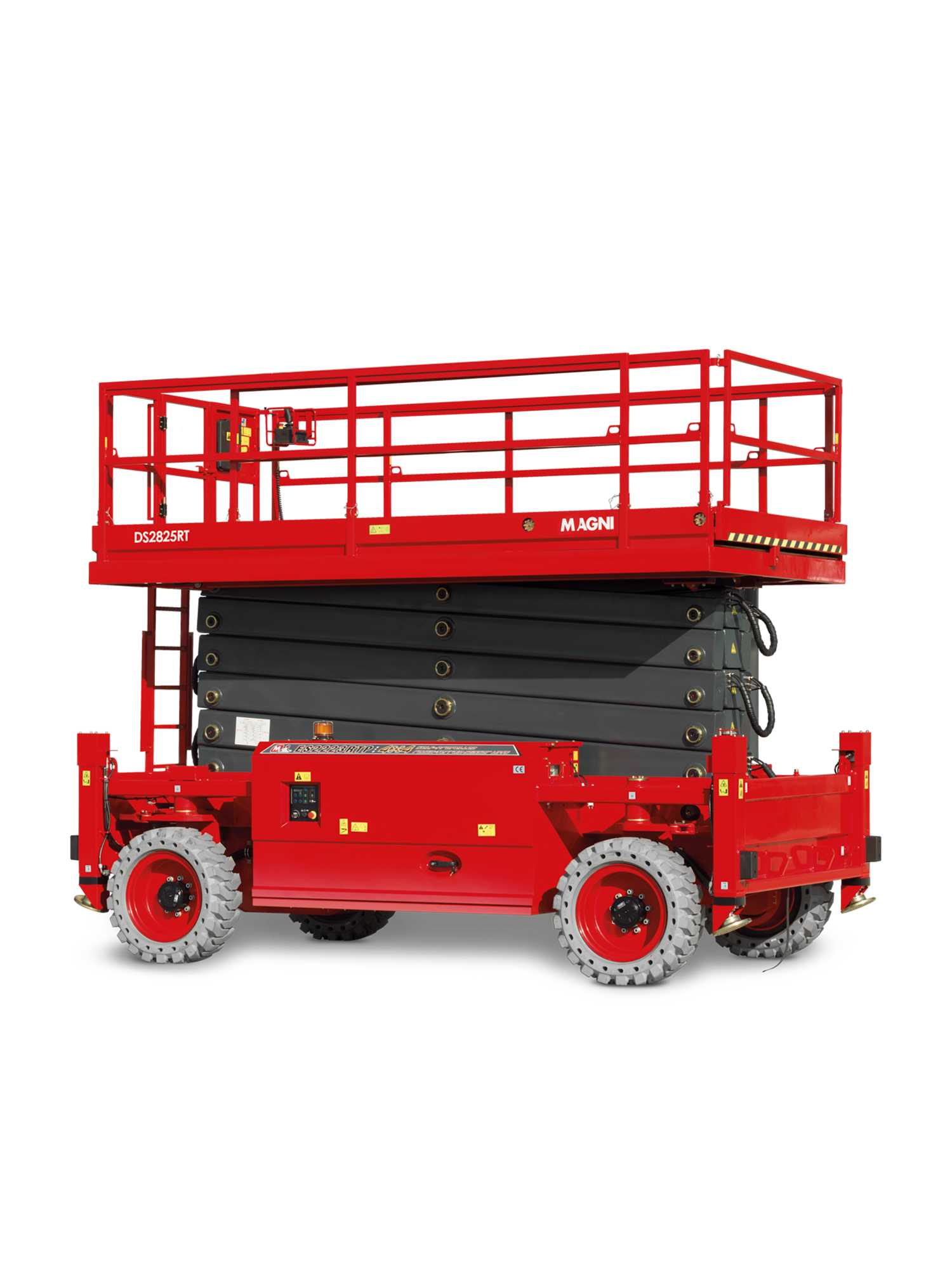

Off-road scissor lift platform offering high lifting speed and excellent off-road performance. Equipped with standard 4WD and non-marking solid tires. The outriggers are automatic and perfect for stability when working at height. The platform allows for travel at maximum height, enabling greater flexibility in work operations.





• Automatic stabilizers for working at height
• Anti-crushing protection
• Self-locking gate on the platform
• Speed limit at maximum height
• Platform overload control
• Automatic braking system
• Non-marking tires
• Tilt indicator with alarm
• Acoustic signal for descent and double LED flashing light
• Safety bracket for maintenance operations
• Horn
• Emergency stop button
• Emergency descent system
• Tie-down points
• On-board diagnostic system
• Hour meter
• Proportional controls
• Folding guardrail
• Power outlet on the platform
• Anti-burst hose system
• Motion alarm
• Integrated fork pockets for transport
• Anchoring and lifting points
• Double sliding platform extension
• 4-wheel drive
• 4-wheel steering
• Weight-dependent descent system
• Manual emergency brake release
• Hydraulic oil cooling system
• Engine anti-restart protection

Regulations

Technical Data

Metrico
CaratteristicaMetricoImperiale
StabilizersSiSi
Capacity1000Kg-
Load capacity when extended1000Kg-
Max. Occupants (indoor/outdoor) 44
Working height28m-
Platform floor height26m-
Total Length5.96m-
Total Width2.50m-
Total height (with railing up)4.13m-
3.19m-
Platform length5.48m-
Platform width2.45m-
Platform extension2.10m-
Ground clearance23m-
Wheelbase4.10mm-
Transmission--
Turning radius (internal)3.50cm-
Turning radius (external)6cm-
EngineDeutz TD2.9 L4Deutz TD2.9 L4
Rated Power55kW hp 2.600rpm55kW hp 2.600rpm
Drive Motors--
Lifting Motors--
Speed (closed)4km/h-
Travel speed (open)0.30km/h-
Gradeability40%40%
Max. Working slope 2°/3°2°/3°
Battery capacity--
Integrated battery charger--
Hydraulic tank130l130l
Diesel tank260l260l
Tires355/55D625355/55D625
Non-marking tires--
Weight19.800Kg-
