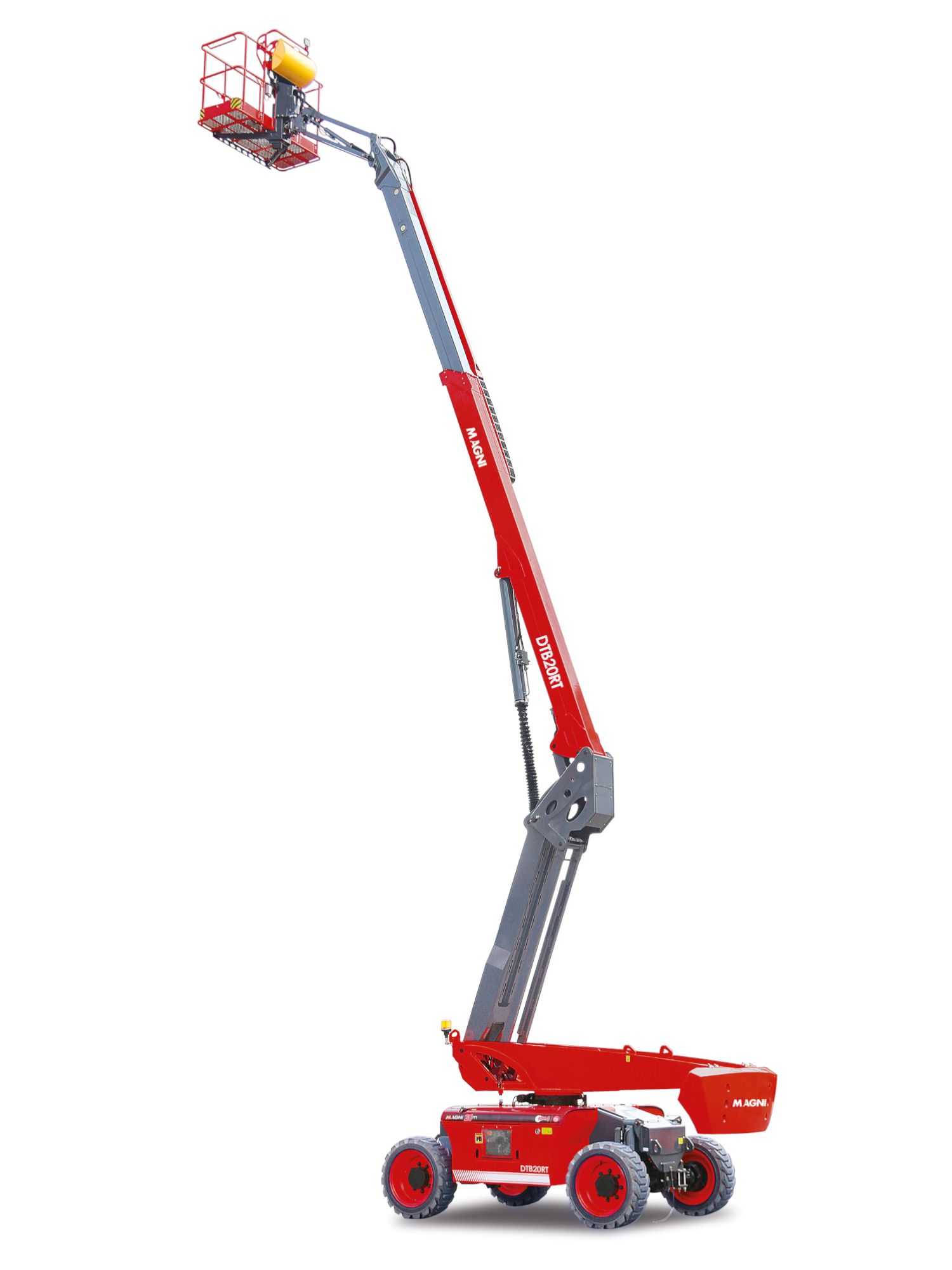

Dtb20rt

Capacity

320 Kg

Working height

20,23 m

[potenza_nominale_telescopici_metrico]

The design of this telescopic platform features a lowered center of gravity: the result is maximum stability and exceptional lifting performance. It is equipped with a low fuel consumption diesel engine and 4 drive wheels integrated into the axle for improved off-road traction.

Modular design with parts compatibility across the entire range
Proportional controls
Steering button on joystick
Flashing beacon
Horn
Hour meter
Extreme environment kit
12 V DC emergency power supply

Oscillating front axle for better stability on all types of terrain
2 steering wheels
4-wheel drive
4-wheel drive axle with positive traction
360° rotation (continuous)
Special integral drive axle for construction machinery

Stage V engine (stage IIIA on request)
Automatic engine shutdown in case of failure
Engine anti-reverse device
Engine restart protection
Hydraulic oil cooler

Self-leveling basket
Rotating basket +/-90°
Power outlet on platform

Drive enable system
Platform load control system
On-board diagnostic system
Tilt indicator with alarm
Anti-crushing protection
Emergency descent system

Regulations

ANSI/SAIA A92.20

EN 280-1 standards related to mobile elevating work platforms (if available)

Home > Prodotti > Aerial Platforms > Telescopic > Dtb20rt

Dtb20rt

Technical Data

Metric

Feature	Metric	Imperial
Max. working height	20.23m	-
Max. basket height	18.23m	-
Max. outreach	13.36m	-
Load capacity	320Kg	-
Max. gradeability (closed)	40%	40%
Max. working slope	X-5°/Y-5°	X-5°/Y-5°
Max. wind speed	12.5m/s	-
Turning radius (internal)	3m	-
Turning radius (external)	4.66m	-
Vertical boom rotation	132°	132°
Jib type	regolare	regolare
Jib length	1.5m	-
Basket width	0.79m	-
Basket length	1.83m	-
Basket rotation	180°	180°
Total weight	8150Kg	-
Speed (closed configuration)	6km/h	-
Speed (open configuration)	1.1km/h	-
Tires	315/55D20	315/55D20
Engine	Kubota D1105/18kW	Kubota D1105/18kW
Rated Power	kW hp rpm	-
Diesel tank capacity	115l	115l
Oil tank capacity	145l	145l
Emergency power system	12V DC	12V DC
Platform length (transport)	7.63m	-
Platform width (transport)	2.44m	-
Platform height (transport)	2.68m	-
