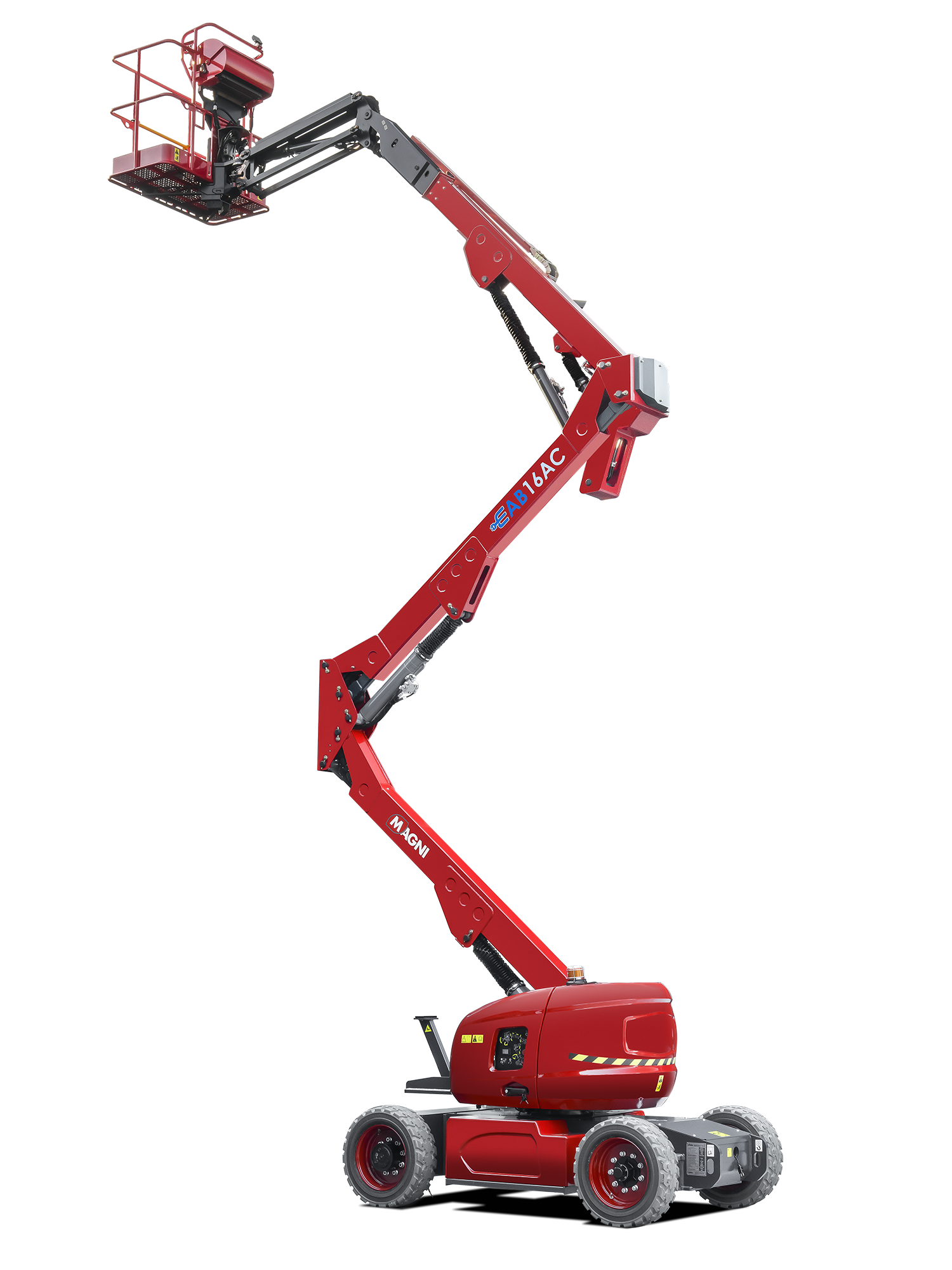

Eab16ac

Capacity

230 Kg

Working height

16,50 m

[potenza_nominale_articolate_metrico]

This platform is equipped with an integrated high-capacity battery pack. This solution makes the platform quiet and emission-free, making it the ideal solution for any indoor work. . This platform also features a boom folding mode for transport that allows the machine to be shipped via container.

• 2 drive wheels
• 2 steering wheels
• 360° rotation (continuous)
• Proportional controls
• Flashing beacon
• Hour meter
• Horn
• Operation consent
• Foam-filled tires

• Lead-acid battery
• Battery capacity: 48V/280Ah
• Charger: 48V/35A
• Zero emissions

• Self-leveling

• On-board diagnostic system
• Tilt indicator with alarm
• Drive enable system
• Manual safety pump

Regulations

EN 280-1 Standards for mobile elevating work platforms (if available)

ANSI/SAIA A92.20

Home > Prodotti > Piattaforme aeree > Eab16ac

Eab16ac

Technical Data

Metrico

Caratteristica	Metrico	Imperiale
Stabilizers	No	No
Max. working height	16.50 m	-
Max. basket height	14.50 m	-
Articulation point	7.89 m	-
Max reach	7.75 m	-
Load capacity	230 Kg	-
Max. Occupants	2	2
Maximum gradeability (stowed)	30%	30%
Max. Wind Speed	33 m/s	33 m/s
Turning radius (internal)	2.08 m	-
Turning radius (external)	3.30 m	-
Jib Type	Regolare	Regolare
Jib Vertical Rotation	130°	130°
Basket width	0.90 m	-
Basket length	1.45 m	-
Basket rotation	180°	180°
Total weight	6.700 Kg	-
Speed (closed configuration)	6.10 km/h	-
Speed (working configuration)	1.10 km/h	-
Tires	17,5×6,75	17,5×6,75
Rated power	-	kW hp rpm
Battery type	Lead-acid battery	Lead-acid battery
Battery capacity	48V/300Ah	48V/300Ah
Charger	48V/35A	48V/35A
Drive motors	32V AC/3,3KW	32V AC/3,3KW
Lift motors	48V/3,8KW	48V/3,8KW
Transmission	Elettrica	Elettrica
Platform length	6.77 m	-
Platform length (transport)	5.15 m	-
Platform width (transport)	1.73 m	-
Platform height	2 m	-
Platform height (transport)	2 m	-
Wheelbase	2 m	-
Ground clearance	0.20 m	-
