Es0807of

Capacity

230 Kg

Working height

7,80 m

[potenza_nominale_superfici_metrico]

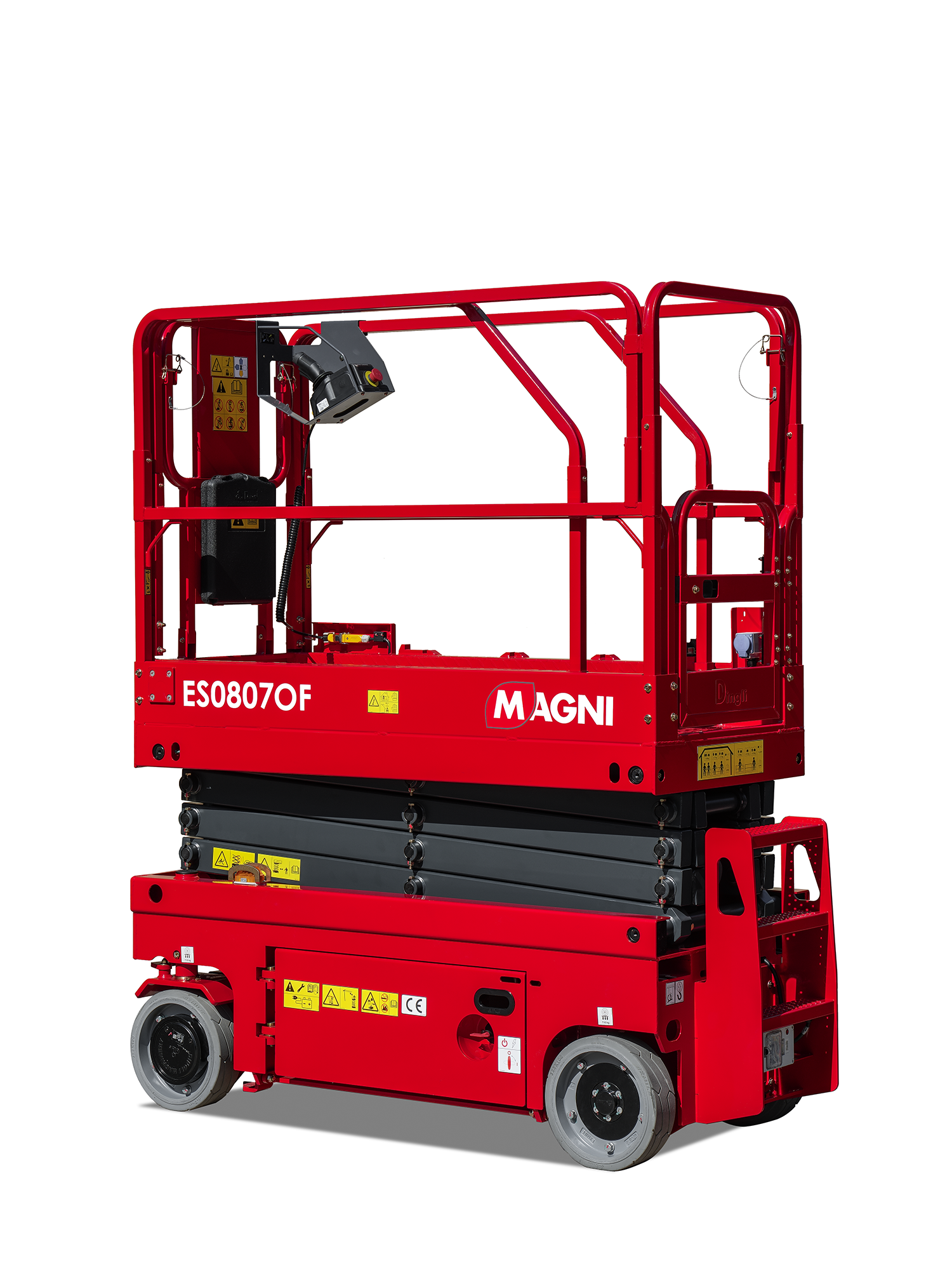

The new Oil Free electric platform ES0807OF offers a maximum working height of 7.80 m and a total load capacity of 230kg.

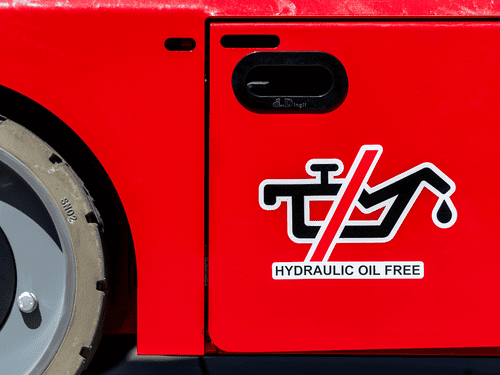

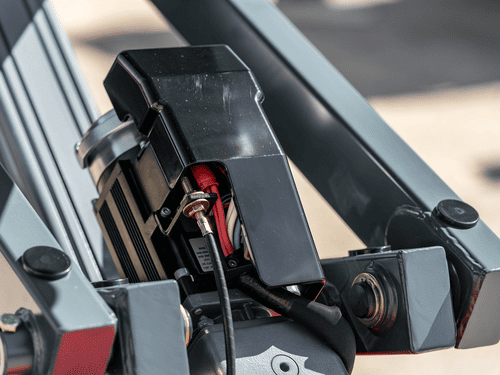

Instead of traditional hydraulic oil cylinders, this new Oil Free range uses electric actuators for lifting, lowering, and steering, reducing noise emissions. They are suitable for environments where it is essential to avoid contamination due to oil or fuel leaks, such as in the food and chemical industries.

This product is powered by 185 Ah AGM batteries (Absorbent Glass Mat), which offer reliability, low consumption, long life, and zero emissions, thus minimizing maintenance and, consequently, management costs.

These platforms are extremely safe as they are equipped with integrated “anti-pothole” side bars to prevent oscillations at height and have greater resistance to water and dust.

Furthermore, the high compactness against vibrations and the watertightness of the batteries prevent liquid leakage even in case of damage to the casing.

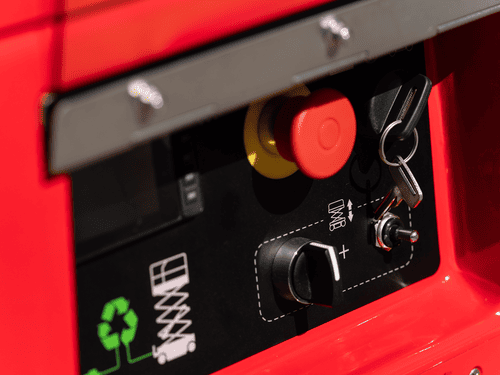

Proportional controls
Self-locking gate on the platform
Unidirectional platform extension
Non-marking tires

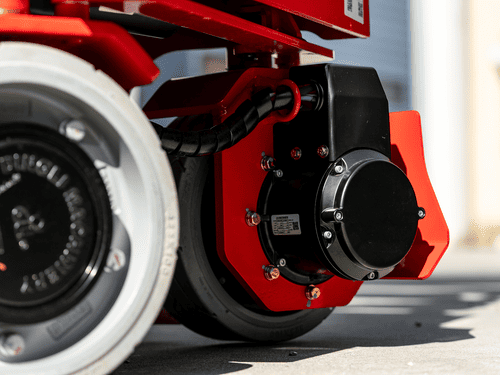

2 drive wheels

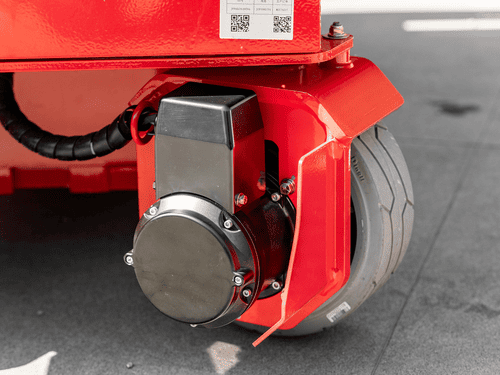

2 steering wheels
Automatic braking system
Emergency descent system
On-board diagnostic system
Motion alarm
Tilt indicator with alarm
Horn
Hour meter
Integrated forklift pockets
Charging protection system
Acoustic signal for descent and double LED flashing light
Safety bracket for maintenance operations
Automatic anti-tipping system in the underbody
Charge indicator
Emergency brake release
Tie-down points
Anchoring and lifting points
Platform overload control
Emergency stop button

Regulations

EN 280-1 Standards for mobile elevating work platforms (if available)

ANSI/SAIA A92.20

Home > Prodotti > Piattaforme aeree > Es0807of

Es0807of

Technical Data

Metrico

Caratteristica	Metrico	Imperiale
Stabilizers	No	No
Capacity	230 Kg	-
Extended capacity	113 m	-
Maximum number of occupants (indoor/outdoor)	2/1	2/1
Working height	7.80 m	-
Platform floor height	5.80 m	-
Total Length	1.86 m	-
Total Width	0.76 m	-
Total height (guardrail up)	2.15 m	-
Transport height (guardrail down)	1.83 m	-
Platform length	1.67 m	-
Platform width	0.74 m	-
Platform extension	0.90 m	-
Ground clearance (closed)	0.60 m	-
Ground clearance (open)	0.15 m	-
Wheelbase	1.36 mm	-
Transmission	Elettrica	Elettrica
Turning radius (external)	1.36 cm	-
Drive motors	2 x 24V / 0,5 kW	2 x 24V / 0,5 kW
Lift motors	24V / 1,4 kW	24V / 1,4 kW
Speed (closed)	4.50 km/h	-
Travel speed (open)	0.50 km/h	-
Battery capacity	4 x 6 V / 185 Ah	4 x 6 V / 185 Ah

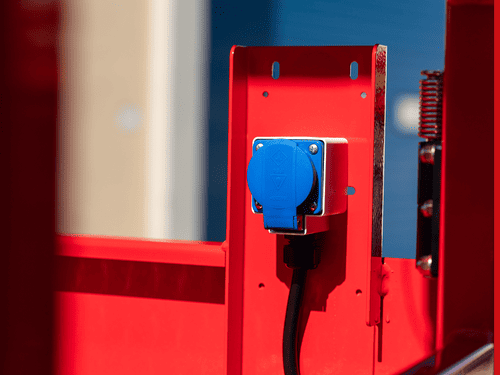

Integrated battery charger	24 V / 30 A	24 V / 30 A
Gradeability	25%	25%
Max. working slope	X -1,5° / Y -3°	X -1,5° / Y -3°
Non-marking tires	323 x 100 mm	323 x 100 mm
Weight (CE)	1.650 Kg	-
