Capacity

230 Kg

Working height

10 m

[potenza_nominale_superfici_metrico]

Es1008of

Capacity

230 Kg

Working height

10 m

[potenza_nominale_superfici_metrico]

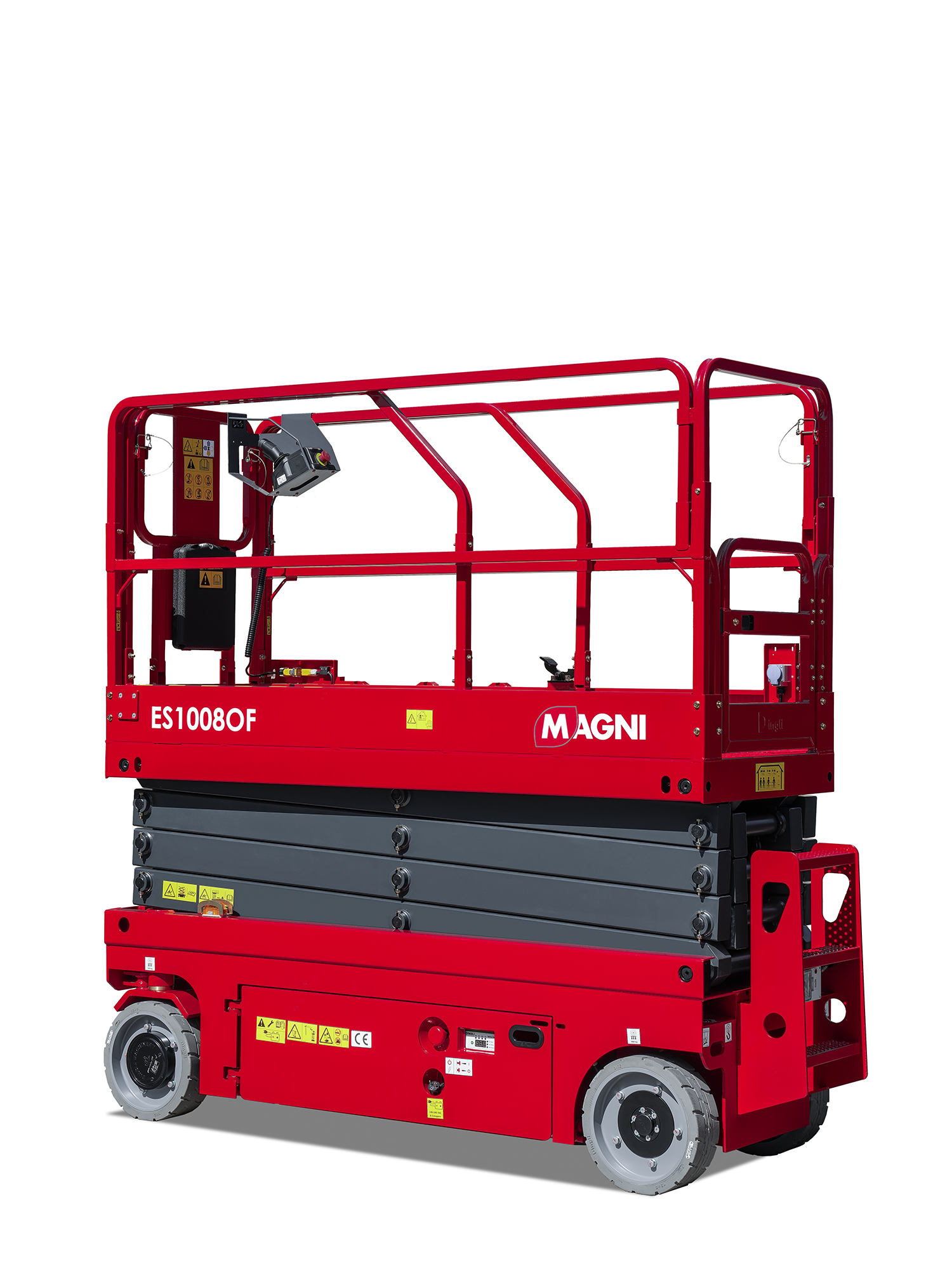

The new Oil Free electric platform ES1008OF offers a maximum working height of 10 m and a total load capacity of 230kg.

Instead of traditional hydraulic oil cylinders, this new Oil Free range uses electric actuators for lifting, lowering, and steering, reducing noise emissions. They are suitable for environments where it is essential to avoid contamination due to oil or fuel leaks, such as in the food and chemical industries.



This product is powered by 185 Ah AGM batteries (Absorbent Glass Mat), which offer reliability, low consumption, long life, and zero emissions, thus minimizing maintenance and, consequently, operating costs.



These platforms are extremely safe as they are equipped with integrated ‘pothole protection’ side bars to prevent oscillations at height and have greater resistance to water and dust.

Furthermore, the high compactness against vibrations and the watertight seal of the batteries prevent liquid leakage even in case of damage to the casing.

  • Proportional controls
  • Self-locking gate on the platform
  • Unidirectional platform extension
  • Non-marking tires
  • 2 drive wheels
  • 2 steering wheels
  • Automatic braking system
  • Emergency descent system
  • On-board diagnostic system
  • Movement alarm
  • Tilt indicator with alarm
  • Horn
  • Hour meter
  • Integrated forklift pockets
  • Charging protection system
  • Descent audible alarm and double flashing LED light
  • Safety bracket for maintenance operations
  • Automatic anti-tipping system in the underbody
  • Charge indicator
  • Emergency brake release
  • Anchor eyelets
  • Anchoring and lifting points
  • Platform overload control
  • Emergency stop button
  • Regulations

    EN 280-1 Standards for mobile elevating work platforms (if available)

    ANSI/SAIA A92.20

    Technical Data

    Metrico
    CaratteristicaMetricoImperiale
    StabilizersNoNo
    Capacity230 Kg-
    Extended capacity113 m-
    Maximum number of occupants (indoor/outdoor)2/02/0
    Working height10 m-
    Platform floor height8 m-
    Total Length2.48 m-
    Total Width0.83 m-
    Total height (guardrail up)2.36 m-
    Transport height (guardrail down)2 m-
    Platform length2.27 m-
    Platform width0.81 m-
    Platform extension0.90 m-
    Ground clearance (closed)10 m-
    Ground clearance (open)0.19 m-
    Wheelbase1.87 mm-
    TransmissionElettricaElettrica
    Turning radius (external)2.10 cm-
    Drive motors2 x 24V / 0,87 kW2 x 24V / 0,87 kW
    Lift motors24V / 3,20 kw24V / 3,20 kw
    Speed (closed)5 km/h-
    Travel speed (open)0.80 km/h-
    Battery capacity4 x 6 V / 185 Ah4 x 6 V / 185 Ah
    Integrated battery charger24 V / 30 A24 V / 30 A
    Gradeability25%25%
    Max. working slopeX -1,5° / Y -3°X -1,5° / Y -3°
    Non-marking tires381 x 127 mm381 x 127 mm
    Weight (CE)2.410 Kg-
