1000 Kg
28 m
Home > Prodotti > Piattaforme aeree > Es2825rt

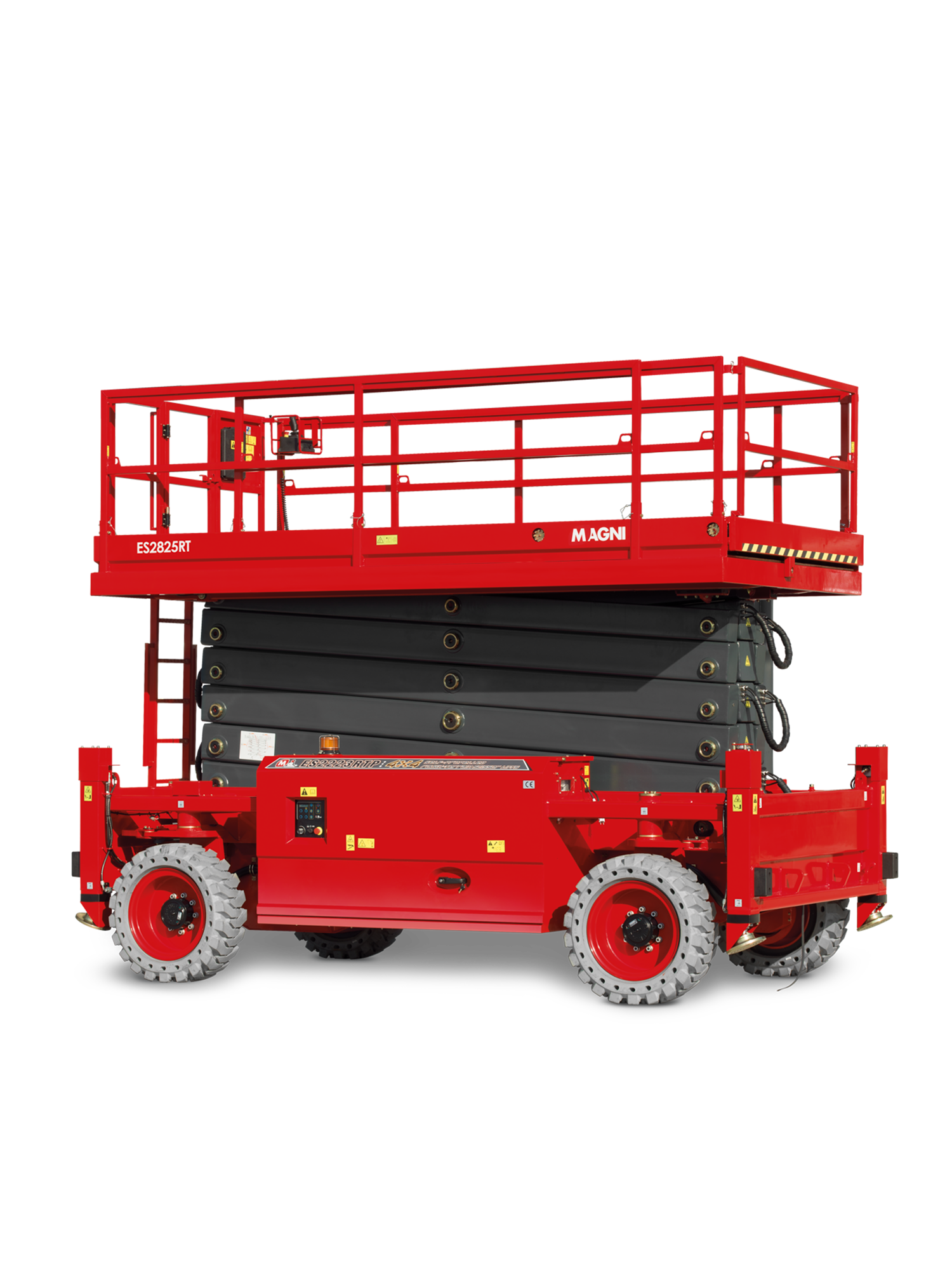

Fully electric rough-terrain scissor lift for greater versatility on the construction site. Equipped with standard 4WD and non-marking solid tires for the most uneven terrains. The outriggers are automatic and perfect for stability when working at height. The platform allows for translation at maximum height, enabling greater flexibility in work.
• Automatic stabilizers for working at height
• Anti-crushing protection
• Self-locking gate on the platform
• Speed limit at maximum height
• Platform overload control
• Automatic braking system
• Non-marking tires
• Tilt indicator with alarm
• Acoustic signal for descent and double LED flashing light
• Safety bracket for maintenance operations
• Horn
• Emergency stop button
• Emergency descent system
• Tie-down points
• On-board diagnostic system
• Hour meter
• Proportional controls
• Folding guardrail
• Power outlet on the platform
• Lithium battery – Maintenance-free
• Anti-burst hose system
• Motion alarm
• Charging protection system
• Charge indicator
• Anchoring and lifting points
• Unidirectional and automatic platform extension
• 4-wheel drive
• 4-wheel steering
• Weight-dependent descent system
• Emergency pump
EN 280-1 Standards for mobile elevating work platforms (if available)
ANSI/SAIA A92.20
Home > Prodotti > Piattaforme aeree > Es2825rt
Caratteristica | Metrico | Imperiale |
---|---|---|
Stabilizers | Si | Si |
Capacity | 1000Kg | - |
Load capacity when extended | 1000Kg | - |
Max. Occupants (indoor/outdoor) | 4 | 4 |
Working height | 28m | - |
Platform floor height | 26m | - |
Total Length | 5.96m | - |
Total Width | 2.50m | - |
Total height (with railing up) | 4.13m | - |
3.19m | - | |
Platform length | 5.48m | - |
Platform width | 2.45m | - |
Platform extension | 2.10m | - |
Ground clearance | 23m | - |
Wheelbase | 4.10mm | - |
Transmission | Elettrica | Elettrica |
Turning radius (internal) | 3.50cm | - |
Turning radius (external) | 6cm | - |
Engine | - | - |
Rated Power | - | kW hp rpm |
Drive Motors | 4×53VAC/2kW | 4×53VAC/2kW |
Lifting Motors | 53VAC/28kW | 53VAC/28kW |
Speed (closed) | 3.50km/h | - |
Travel speed (open) | 0.30km/h | - |
Gradeability | 30% | 30% |
Max. Working slope | 2°/3° | 2°/3° |
Battery capacity | 80V520AH | 80V520AH |
Integrated battery charger | 80V/80A | 80V/80A |
Hydraulic tank | 260l | 260l |
Diesel tank | - | - |
Tires | 355/55D625 | 355/55D625 |
Non-marking tires | - | - |
Weight | 19.750Kg | - |
