320 Kg
18,11 m
Home > Prodotti > Piattaforme aeree > Hab18rt

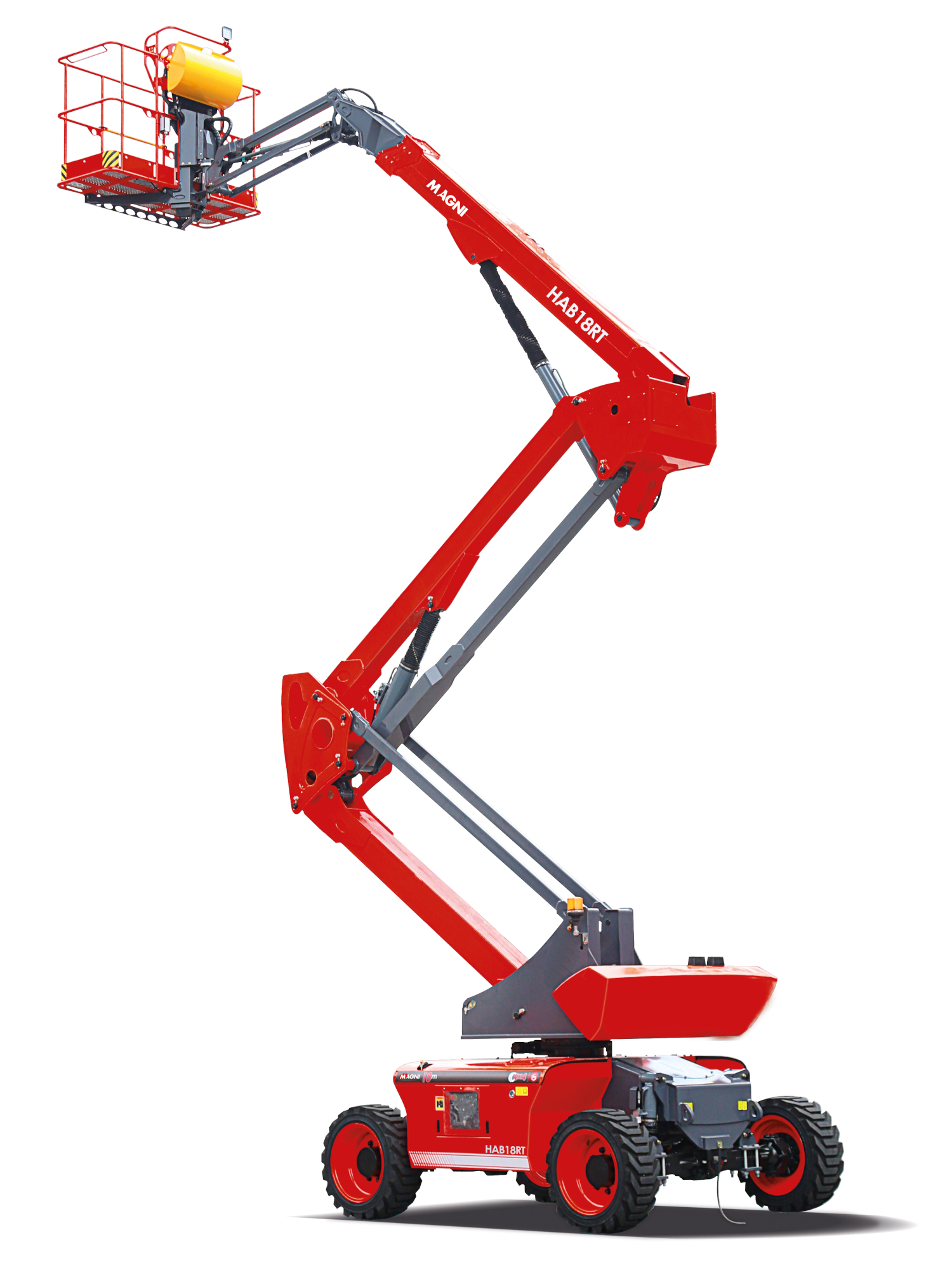

This hybrid platform is an environmentally friendly solution that ensures, thanks to the Range Extender engine, the ability to operate electrically with an extended autonomy of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. The platform is equipped with 4-wheel drive for better stability on all types of terrain. This platform also features a boom folding mode for transport that allows the machine to be shipped via container.
• Oscillating front axle • Stability on all types of terrain • Two travel speeds • 2 steering wheels • 4 wheel drive • 360° rotation (continuous) • Special integral drive axle for construction machines • Modular design with parts compatibility across the entire range • Proportional controls • Steering button on joystick • Flashing beacon • Non-marking tires • Horn • Hour meter • Extreme environment kit • 12V DC emergency power supply
• TIANNENG – Lead-acid battery • Battery capacity: 48V/320Ah • Charger: 48VDC/60A • Single-phase 220V • Charging time from 0 to 100% (hours)*: 5 • Range extender engine: Kubota Z482/9.8kW
• Self-leveling • Rotating +/-90° • Schuko power outlet 16A/250V
• Drive enable system • Platform load control system • On-board diagnostic system • Emergency descent system • Tilt indicator with alarm • Anti-crushing protection
EN 280-1 Standards for mobile elevating work platforms (if available)
ANSI/SAIA A92.20
