Home > Prodotti > Piattaforme aeree > Hab24rt

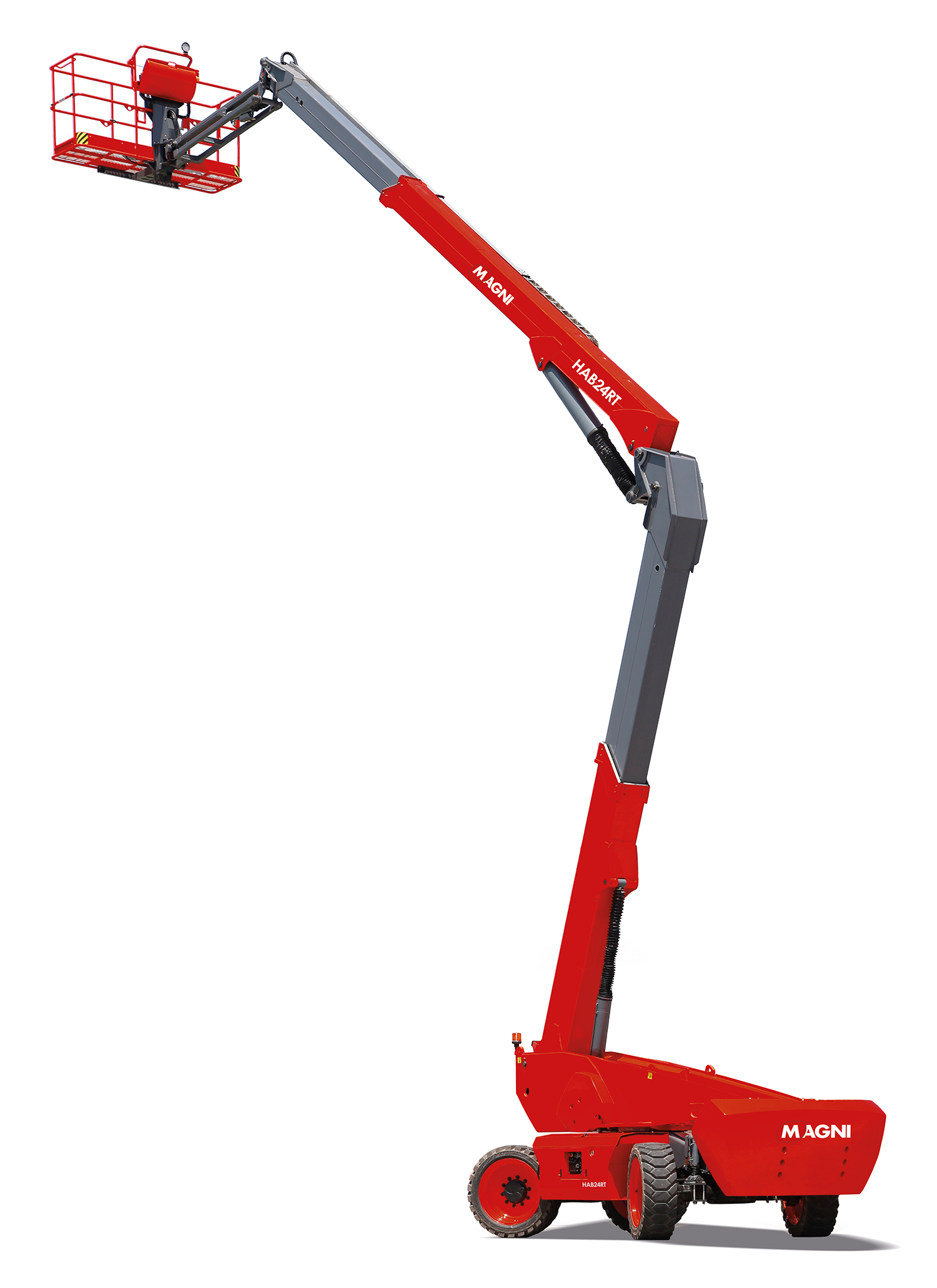

This hybrid platform is an environmentally friendly solution that ensures, thanks to the Range Extender engine, the ability to operate electrically with an extended autonomy of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. The design of this platform features a lowered center of gravity and the capability of negative positioning, to reach areas below the support surface. The platform is equipped with 4-wheel drive and steering for better stability on all types of terrain. This platform also includes a boom folding mode for transport that allows the vehicle to be shipped via container.
• Modular design with parts compatibility across the entire range • Proportional controls • Steering button on joystick • Flashing beacon • Horn • Hour meter • Extreme environment kit • 12 V DC emergency power supply
• Oscillating front axle for better stability on all types of terrain • 4-wheel steering • 4-wheel drive • 4-wheel drive axle with positive traction • 360° rotation (continuous)
• Self-leveling basket • Rotating basket +/-90° • Power outlet on platform
• Drive enable system • Platform load control system • On-board diagnostic system • Tilt indicator with alarm • Anti-crushing protection • Emergency descent system
• Lithium battery – Maintenance-free • Battery capacity: 80V/320Ah • Charger: – • Single-phase and three-phase 380V & 220V • Charging time from 0 to 100% (hours)*: 4.5 • Range extender engine: Kubota Z482/9.8kW
