453,98 Kg
24,80 m
Home > Prodotti > Aerial Platforms > Telescopic > Htb24rt

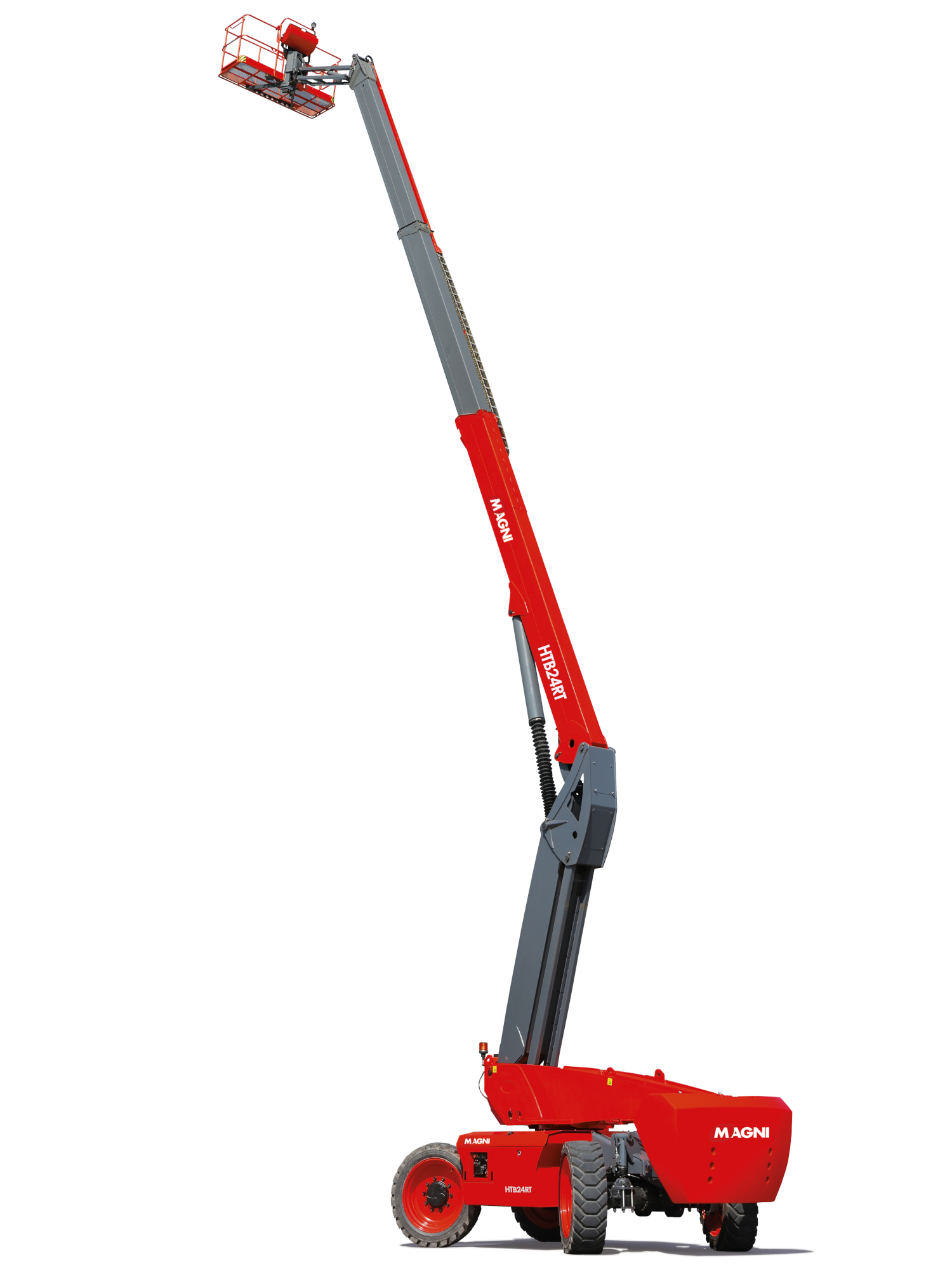

This hybrid platform is an environmentally friendly solution that ensures high efficiency and reduced operating costs. Thanks to the Range Extender engine, the platform can operate electrically with an extended autonomy of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. The platform is equipped with 4-wheel drive and steering for better stability on all types of terrain. This platform also features an arm folding mode for transport that allows the vehicle to be shipped via container.
• Modular design with parts compatibility across the entire range • Proportional controls • Steering button on joystick • Flashing beacon • Horn • Hour meter • Extreme environment kit • 12 V DC emergency power supply
• Front oscillating axle for better stability on any type of terrain • 4-wheel steering • 4-wheel drive • 4-wheel drive axle with positive traction
• Self-leveling basket • Rotating basket +/-90° • Power outlet on platform
• Drive enable system • Platform load control system • On-board diagnostic system • Tilt indicator with alarm • Anti-crushing protection • Emergency descent system
• Lithium battery – Maintenance-free • Battery capacity: 80V/320Ah • Charger: – • Single-phase and three-phase 380V & 220V • Charging time from 0 to 100% (hours)*: 4.5 • Range extender engine: Kubota Z482/9.8kW
EN 280-1 standards related to mobile elevating work platforms (if available)
ANSI/SAIA A92.20
