453,99 Kg
36,23 m
Home > Prodotti > Aerial Platforms > Telescopic > Htb36rt

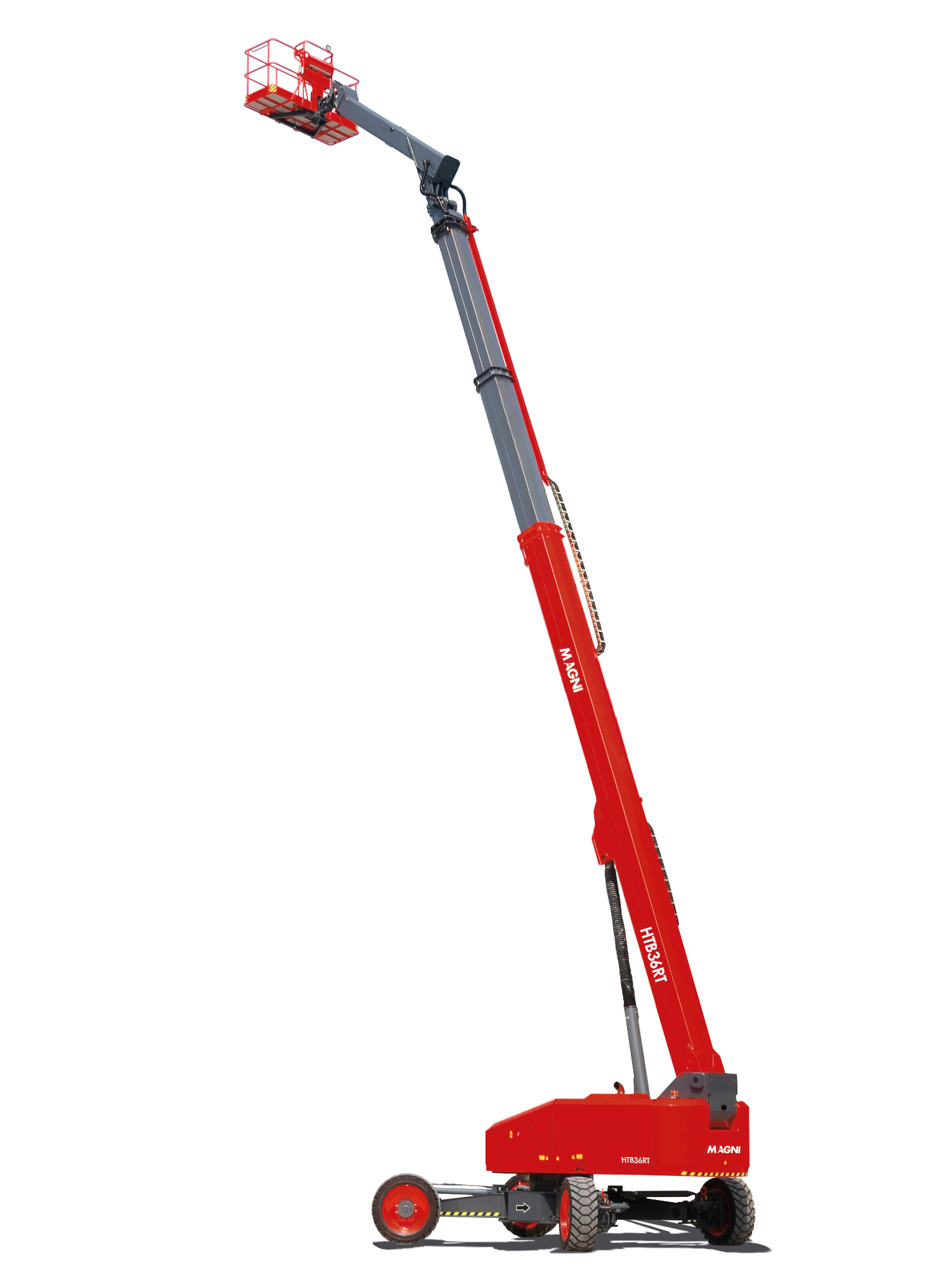

This hybrid platform is an environmentally friendly solution that ensures high efficiency and reduced operating costs. Thanks to the Range Extender engine, the platform can operate electrically with an extended autonomy of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. The platform is equipped with 4-wheel drive and steering for better stability on all types of terrain. This platform also features an arm folding mode for transport that allows the vehicle to be shipped via container.
• Modular design with parts compatibility across the entire range • Proportional controls • Flashing beacon • Horn • Counter • Openable cover for easy maintenance • Negative pressure brake with sensor • Real-time onboard system • Platform rotation angle monitoring sensor • Chain malfunction monitoring • Speed monitoring • Working conditions monitoring • Rexroth hydrostatic drive system • Extreme environment kit • Emergency power supply 12V/110A×2
• 4-wheel steering • 4-wheel drive • Patented extendable chassis • On-site axle expansion • 360° rotation (continuous) • Turret locking system • Ultra-rigid boom • Hydraulic oil cooler
• Drive enable system • Platform load control system • Onboard diagnostic system • Tilt indicator with alarm • Basket bottom protection sensor • Descent and movement alarms • Anti-crushing protection • Cat.3 Safety Architecture – ISO 13849-1
• Lithium battery – Maintenance-free • Battery capacity: 358.4V/160Ah • Charger: 358.4V/32A • Three-phase 380V • Charging time from 0 to 100% (hours)*: 9 • Range extender engine: Kubota D1105/18.2kW
• Self-leveling basket • Rotating basket +/-90° • Power outlet on platform
EN 280-1 standards related to mobile elevating work platforms (if available)
ANSI/SAIA A92.20
