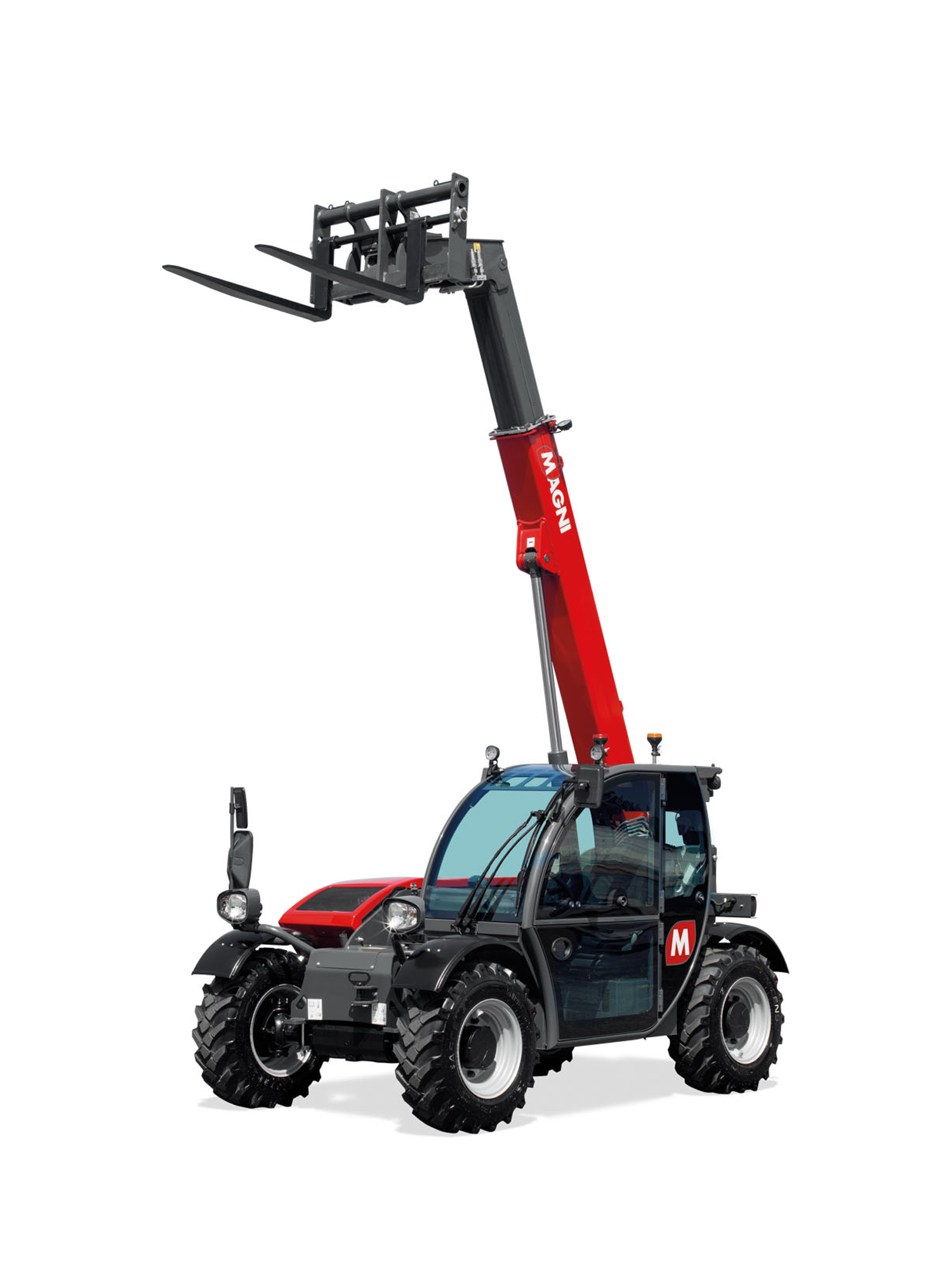

THA 3.6

With a capacity of 3 tonnes and a height of 5.8 meters, the new THA 3.6 combines compact dimensions with high performance. The most compact fixed agricultural telescopic handler in the THA range, designed for the agricultural sector, is capable of carrying the full load to a height of 5.4 meters, 2,500 kg at maximum height, and 1,000 kg at over 3 meters of horizontal reach. Thanks to its lowered design, it is ideal for confined spaces, while maintaining optimal ground clearance for rough terrain.

These features, combined with a Deutz Stage V 55 kW (75 hp) engine, allow it to reach 35 km/h. The 4-wheel drive and steering, supported by a hydrostatic transmission, ensure maximum stability and maneuverability with 3 types of steering: front, concentric, and crab.

Accessible via the 7-inch touch screen, the MCTS (Magni Combi Touch System) onboard software provides complete control of the machine through icon-based navigation. From the main menu, you can access themed pages with various functions, including load diagrams.

Compared to competing models available on the market equipped with the more common load cell system, the THA 3.6 is the only one equipped with a more sophisticated and precise anti-tipping mechanism to maximize performance and safety. This is the LMI (Load Moment Indicator), which allows constant monitoring of the vehicle’s movements to avoid any type of overload.

Distinctive features of this new model:

• The reversible engine cooling fan, which allows engine cleaning, essential for working optimally in dusty environments.
• CEAT agricultural tires with agri tread, which guarantees quality, durability, and performance

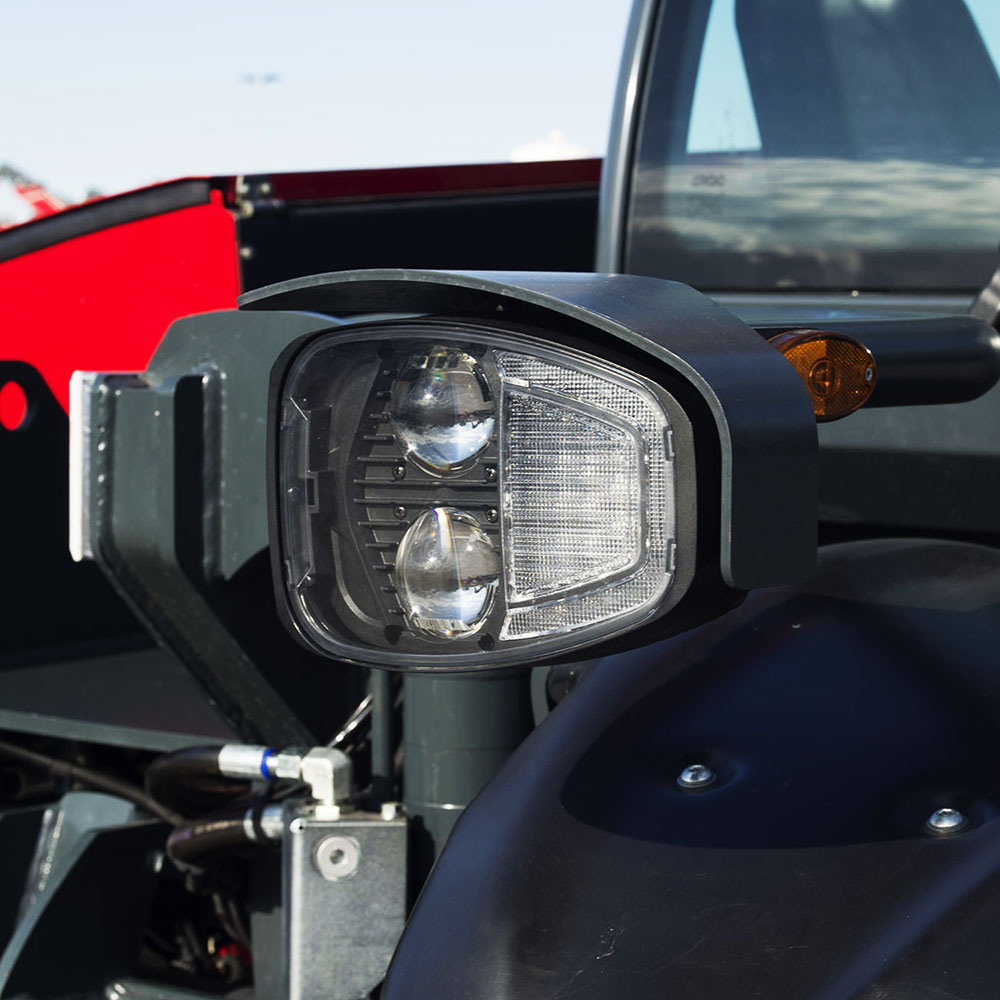

• Front and rear LED lights as standard
• Gear selector on steering column
