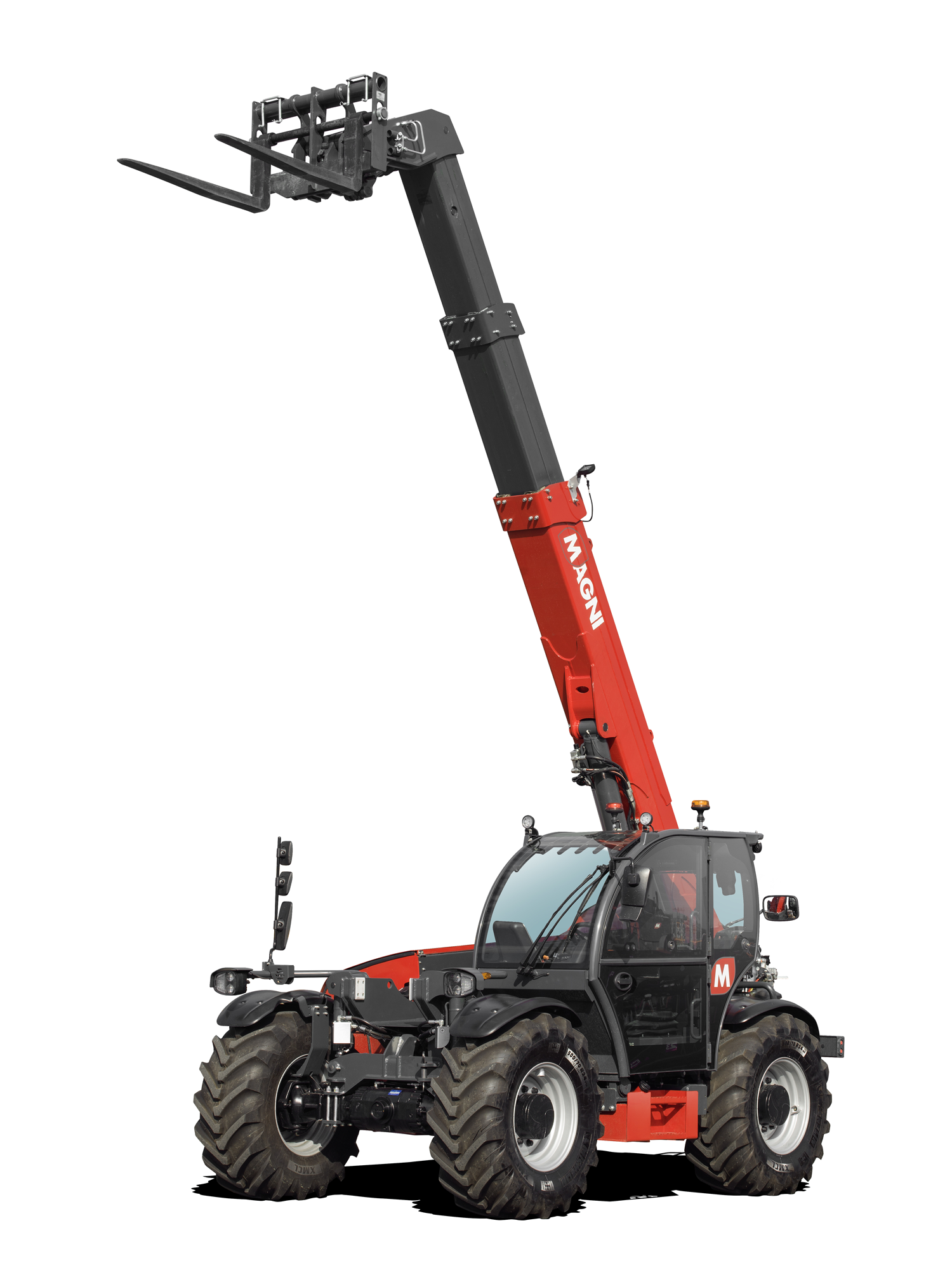

THA 5.10

The new THA 5.10 model has a maximum capacity of 5 tons and a maximum working height of 10 meters; capable of handling high-capacity solutions, this machine has been designed to meet the needs of the agricultural world.

These features, combined with an FPT Stage V 125 kW (170 hp) engine, allow it to reach 50 km/h. The 4-wheel drive and steering, supported by a hydrostatic transmission, ensure maximum stability and maneuverability with 3 types of steering: front, concentric, and crab.

Accessible via the touch screen, the MCTS (Magni Combi Touch System) on-board software provides complete control of the machine through icon-based navigation. From the main menu, you can access themed pages with various functionalities, including load diagrams with new functions specific to the agricultural world.

Distinctive features of this new model:

• Cab suspension: increases operator comfort and reduces vibrations during work.
• The shortcut buttons located on the control console allow quick access to the main functions on the screen. The operator can configure the shortcuts according to their preferences.
• Front and rear LED lights as standard
• Engine retarder: a solution implemented through joint work between Magni and FPT. For safety reasons, this function maintains stable rpm during descent for greater protection of the driveshaft and engine when driving on steep roads.
• Electronic LC: through electronics, hydraulics are constantly monitored to reduce consumption and consequently the machine’s emissions as much as possible.
• CVT Transmission: high-performance transmission designed to allow better traction on all types of terrain; it also allows a speed of 50 km/h in all driving conditions.
• Hydropneumatic axle suspension: in working configuration, the cylinders make the machine rigid and capable of better handling the load. These cylinders can be extended independently to compensate for ground slope.
• Side shift: this function allows the boom to shift +/-4.5° to optimize lateral load positioning.
• 7° Leveling System: this mechanism allows the machine to level itself laterally by +/- 7°.
